AT-2400HR 4K HDR With Armor No.2 Case
Category：Monitor
Screen Size：24 inch
Features
- New generation AT-2400HR professional 4K HDR LCD monitor；
- Ruige lastest product, the AT-2400HR professional 4K HDR LCD monitor, is capable of transmitting 12G-SDI by using one cable. It is a perfect match for all current 12G-SDI cine cameras.；
- Support 3840*2160 4K UHD resolution；
- Supports display of HDR, which provides a broader spectrum of colors and contrasts, and allows the showing of more details . Allowing the monitor to be the ultimate choice for both on-set capture and post-production of movie, TV shows, and commercials.
- Cover DCI-P3 and Support ITU-R BT.2020
- Support quad view, dual view, and single full view. AT-2400HR can receive up to four input signals, and simultaneously display all sources on one screen in real time.
- We added Ruige exclusive technology “closed detecting” into AT-2400HR.Easily realizingone-key metering.
- AT-2400HR allows users to load customized 3D LUT cude into the monitor by using a flash drive.
- Inspired by our highly appraised Armor No. 1 protective case, the Armor No. 2 makes AT-2200HR the rugged and reliable choice for camera crews live on the scene.
| SIZE | 24 inch |
| RESOLUTION | 3840×RGB×2160 |
| DOT PITCH | 0.13725（H）×0.13725（V）mm |
| ASPECT RATIO | 16:9 / 4:3 switchable |
| BRIGHTNESS | 1000cd/㎡（MAX） |
| CONTRAST（MAX） | 1000:1 |
| COLOR DEPTH | 10Bit （1.073G Color） |
| IMAGE PROCESSING | 12Bit |
| RESPONSE TIME | 7ms |
| VIEWING ANGLE | L、R 178° / U、D 178° |
| COLOR MODE | SMPTE-C、ITU-R BT.709、EBU、DCI-P3、ITU-R BT.2020、Original Color Gamut |
| HDR（High Dynamic Range） | HLG（ITU-R BT.2100）、PQ（SMPTE ST 2084） 2.4HDR、S-log3、V-log |
| EOTF | 2.2、2.35、2.4、2.6、 ITU-R BT.2100（HLG）、SMPTE ST 2048(PQ)、S-log3 V-log |
| HDMI（Optional） | HDMI 2.0 Type A x 1 |
| USB | USB 2.0 Type A x 1 |
| 12G-SDI/3G-SDI | BNC x 4 （2 channles 12G/6G-SDI 4 channels 3G-SDI） |
| SFP+ | SFP+ x 1 12G Fiber Input （Mudule Optional） |
| HDMI（Optional） | HDMI 2.0 Type A x 1 |
| 12G-SDI/3G-SDI | BNC x 4 （2 channles 12G/6G-SDI 4 channels 3G-SDI） |
| Audio demultiplexing | Support |
| Audio meters | 16 channels, Audio Vector |
| Speakers | 2 channels × 8Ω/2W |
| Headphone | 3.5mm Support |
| Input voltage | AC 110V~220V 50/60Hz |
| Ultra Low Power consumption（MAX） | ≤111W |
| Working temperature | 0-45℃ |
| Store temperature | -20-60℃ |
| Store humidity | 0%-90% No Condensation |
| Shell material | Aluminum Alloy |
| Dimension（mm） | L587×H373.3×D40mm |
| Weight（without battery） | Around 7KG |
| Installing way | Desktop or VESA |
| Mounting Holes | 100×100mm |
1. Shortcut keys（user-defined）
2. Input source option keys
3. Function shortcuts zone
4. Analog regulation function area
5. Menu and volume zone
6. Power switch
7. Earphone jack
8. USB port
1. Handle
2. AC power input
3. Power switch
4. DC 12V power input
5. Desktop stand
6. Install Battery adaptor
7. GPI/UMD/LAN port
8. Signal input/output
9. SFP+Port

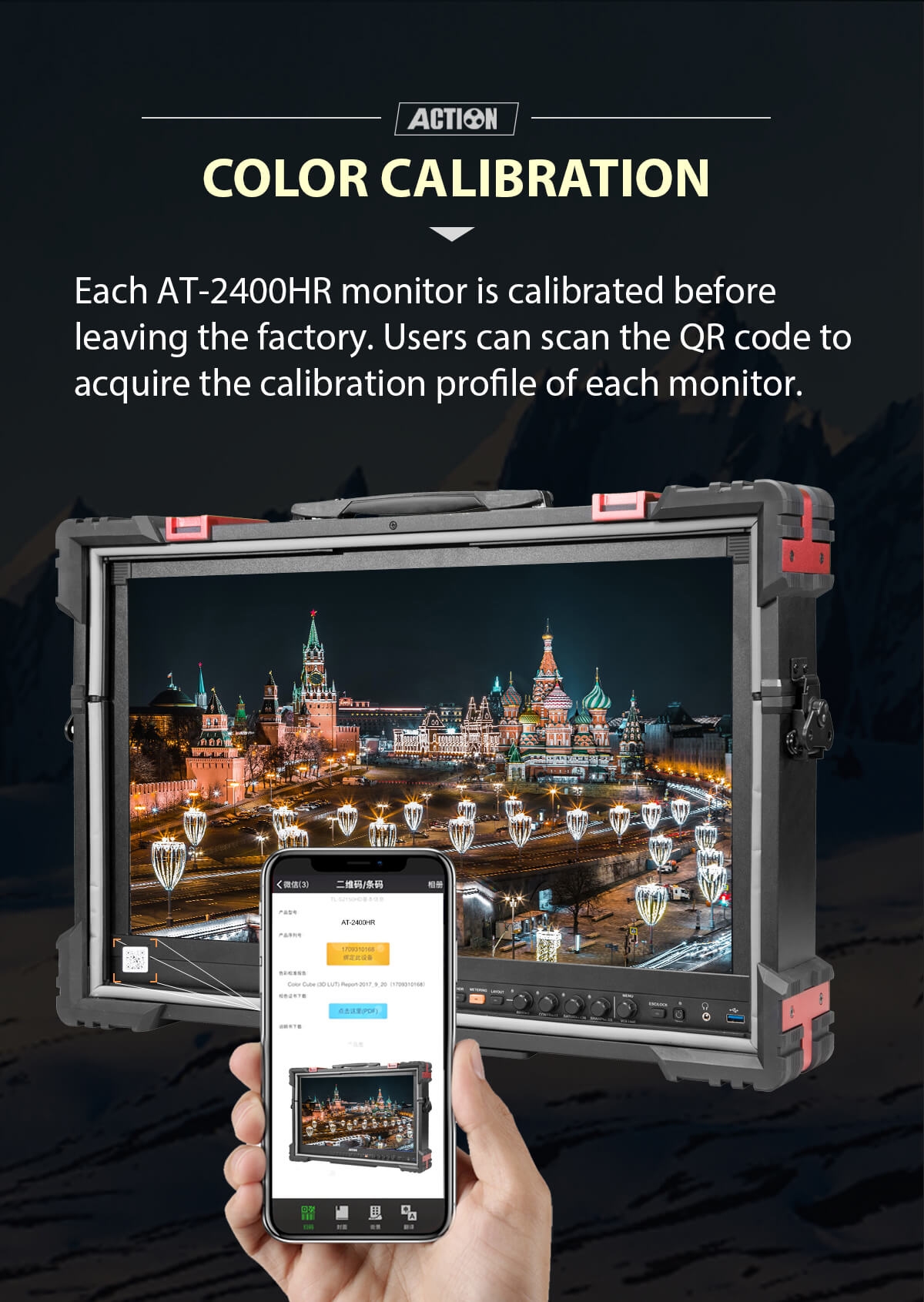

B/P/D Series Monitor internally built in 3D-LUT Color Management System in accordance with unified industry standards and it uses professional testing equipment to take systematic and accurate calibration for monitors to ensure the display indicator of monitor meet the tolerance range of color space standard .Therefore, it ensures each monitor has the accurate color restoration and the color of same style monitors is consistent to the maximum extent .
16 channels of embedded audio in the SDI video signal can be decoded and 8 selective channels can be shown on the screen at the same time. The Volume unit shows both VU and PPM.
Usage:
The Volume unit is used for measuring audio levels and calibration. This is helpful for making sure that audio levels are within technical requirements and specifications.
Dynamic Source information embedded in the SDI video signal can be displayed as UMD or IMD. This feature can be turned on and off via the menu.
Usage:
It can be used to supply signal source information from video routing equipment to operators during a live broadcast event.
GPS in Video
Rapid positioning for out of range indicator
“Exposure analysis” function gives the user the ability to do fast out of range checks. When the image becomes more complex with out of range colors, it becomes too inconvenient to see.
The design inspiration of this function is based on x-ray machines and body scanners at airports. The black color indicates hard items and the softer items are represented with White and purple. These colors can be isolated in one second by contrasting with “Exposure Analysis” when switched on.
Case in point, security checks at airport are lacking due to subjective human factors. With Rapid positioning for out of range indicator allows for 100% accuracy. However, the end user has the freedom to not use this function for that artistic professional look.
Normal Image
Normal Exposure
Over Exposure
Under Exposure
Luminance levels can be represented using False Color on the screen. It represents the amount of exposure explained as color values ranging from Blue to Green to Yellow to Red.
Usage:
False Color is used to assist in setting the camera exposure. Blue (cool color) indicates a low exposure, a darker blue indicates an even lower exposure. Red (warm color) indicates a high exposure and a deeper red indicates an even higher exposure. Green and Yellow are in between. A scan feature allowing the image to be offset to the upper left revealing the Luminance Waveform on the upper right makes it easy to identify parts of the picture which may exceed standards.
A red peaking filter is used for Focus Assistance. It is represented as a red line around sharp edges. The edge color can be changed if desired; available colors are red, blue, green, yellow and white.
Usage:
Using a red peaking filter aids in the ability to quickly focus or refocus a shot. As the photographer zooms into focus his shot sharp edges will be represented as red lines.
Mono(chrome) displays only the Y portion of the video signal
Usage:
Human Eyes are more sensitive to the luminance signal therefore many viewfinders and small monitors have this function.
Usage:
Image overflow or cutoffs can be checked using this feature. This is helpful during “Pan and Scan” as image is prepped for various broadcast markets. Ruige monitors have selections for Safety Marker Scales, Title Scales, Transform Scales and Center Cross. This is helpful for composition during shooting or title placement.
There are 6 fixed vector measurement points; R, Mg, B, Cy, G and Ye. Neutral Colors (Black, White and Grey) are represented in the center of the vector scope. The direction is outward from the center and reflects the degree and amount of saturation; the further away from the center the higher the amount of color.
Usage:
The vector scope shows the distribution of color within the video signal and can be used to determine the amount of color, correct color phase alignment and color analysis of objects within the picture.
The luminance waveform can be superimposed over picture (see below). The Y-axis represents the luminance level. There are two indicators; one at 100% and one at 700mv.
Usage:
The Luminance waveform is mainly used to read the value of the Y signal. This is helpful for setting Camera Iris levels.
The zebra is suggested that the photographic exposure is a highlight indicator, and the aperture can be controlled according to the zebra tips when shooting with a manual aperture.
Usually when the brightness of the subject exceeds the maximum brightness (different types of models) that the camera can accommodate (different, this value is different), the zebra is started, so, when the aperture is adjusted, the subject should be the brighteree Slightly with zebras, while other parts have no zebra, which can be accurately exposed. If the spot is too much, the exposure is excessive; if there is no zebra pattern any part of the image, the image will be insufficient. Now some cameras are adjustable, usually adjusted between 60% and 100% of the highest brightness, and can be selected according to their own habits.
