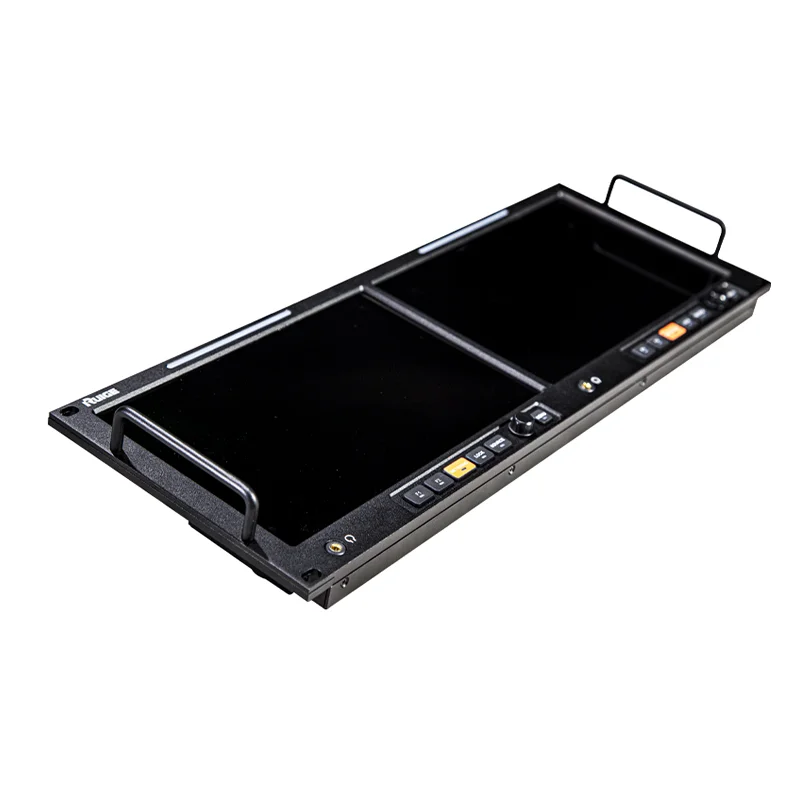

TL1010HD-2
Category：Viewfinder
Screen Size：10.1 Inch
Features

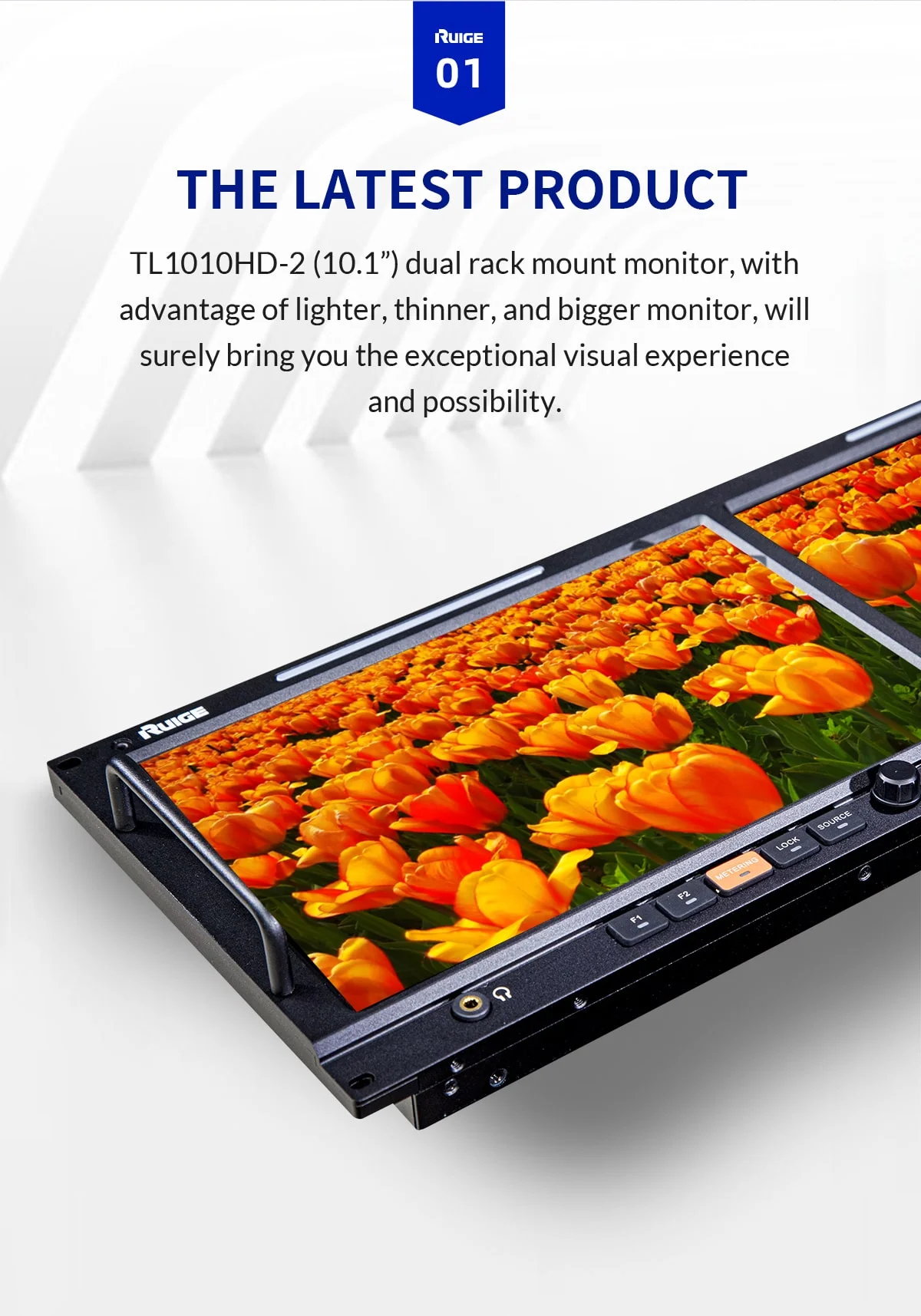

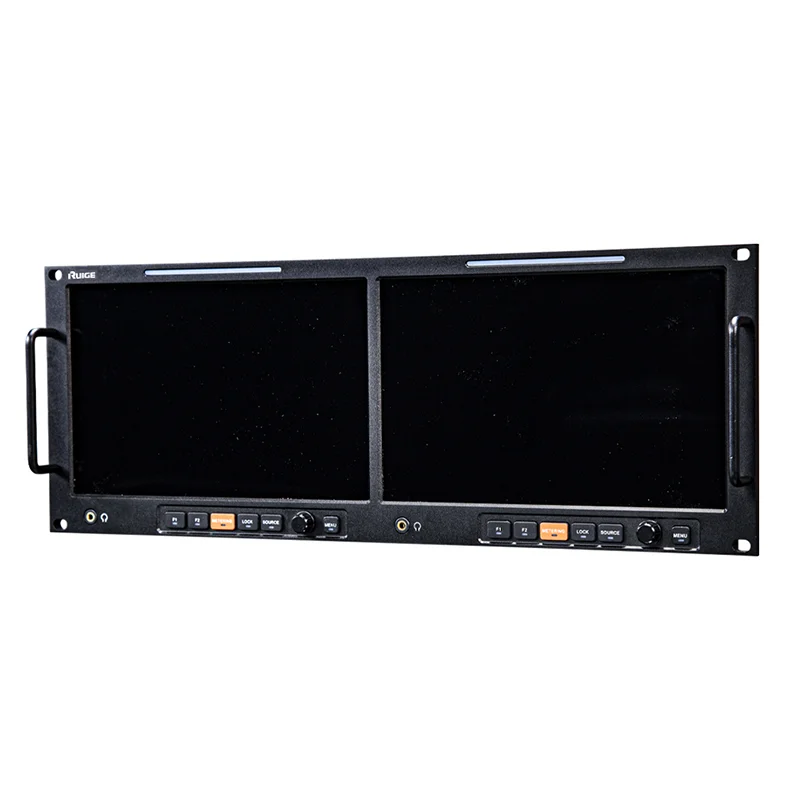

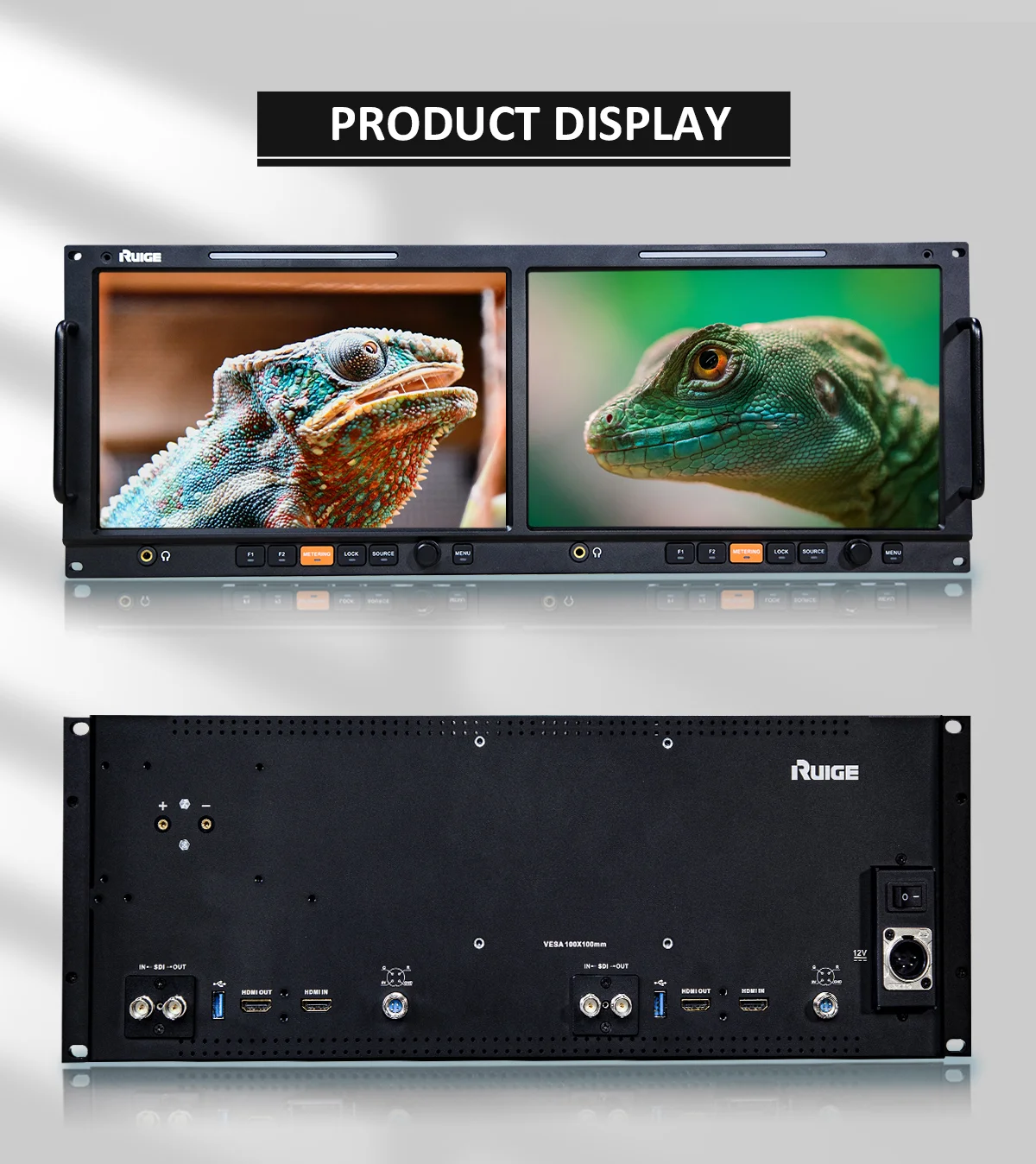

- The latest product TL1010HD-2 (10.1”) dual rack mount monitor, with advantage of lighter, thinner, and bigger monitor, will surely bring you the exceptional visual experience and possibility.

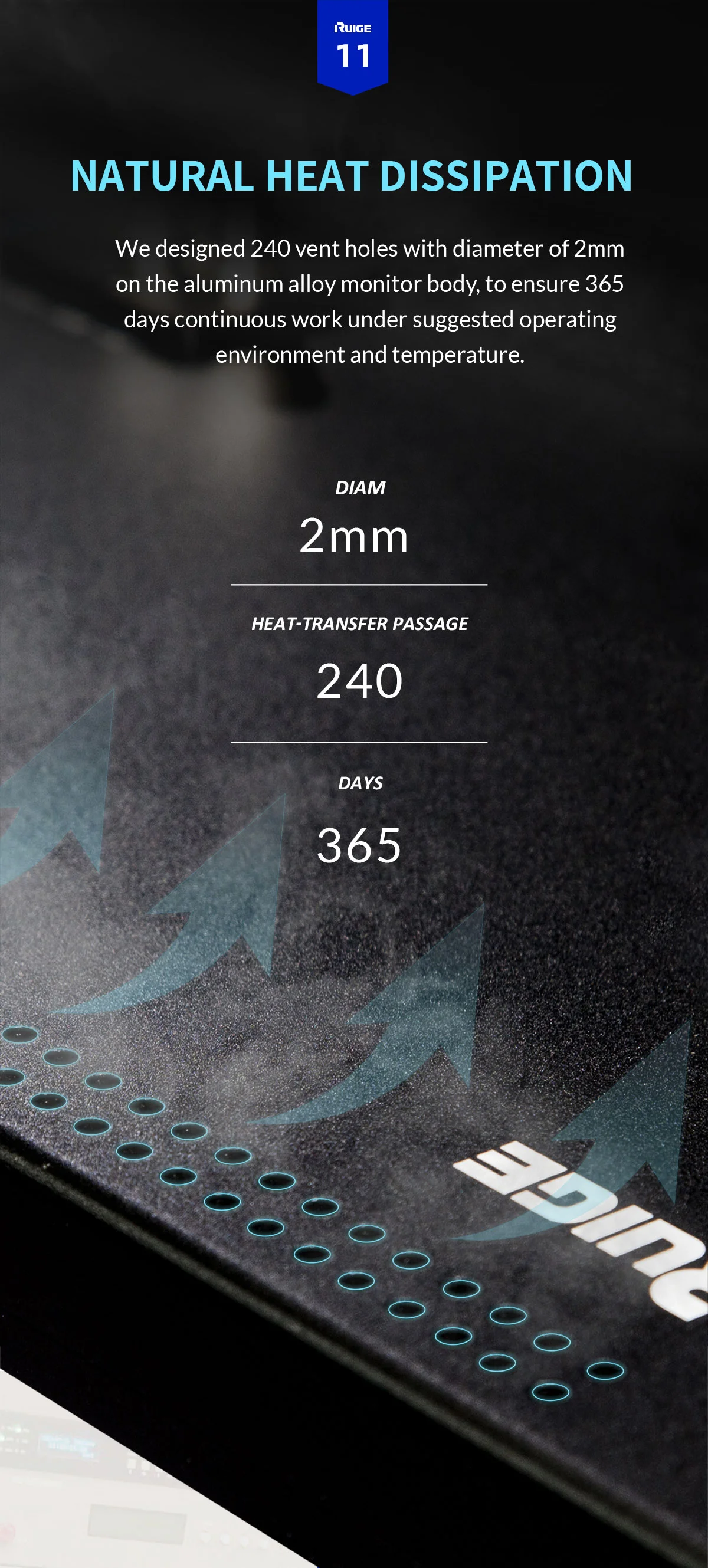

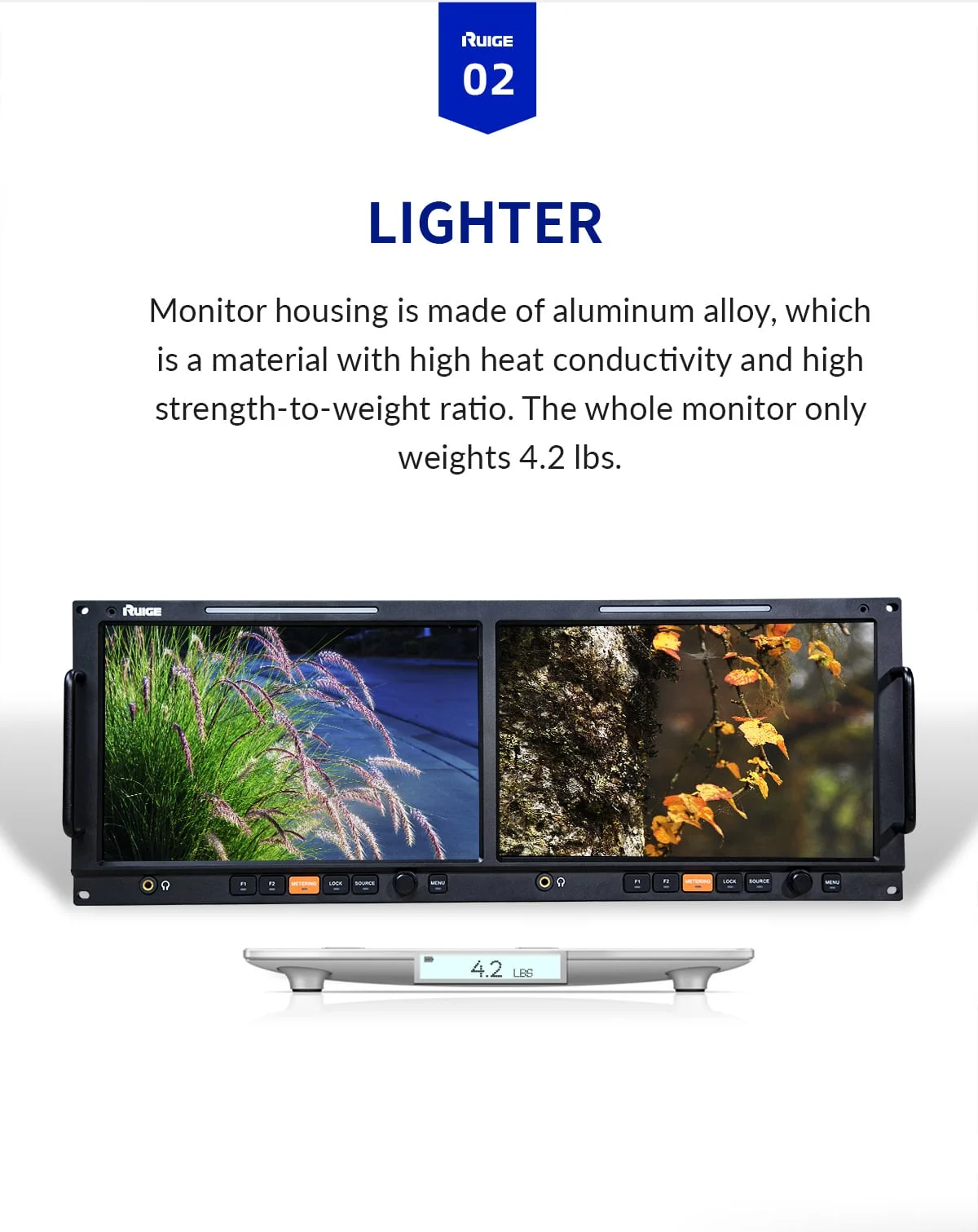

- Monitor housing is made of aluminum alloy, which is a material with high heat conductivity and high strength-to-weight ratio. The whole monitor only weights 3.6 lbs.

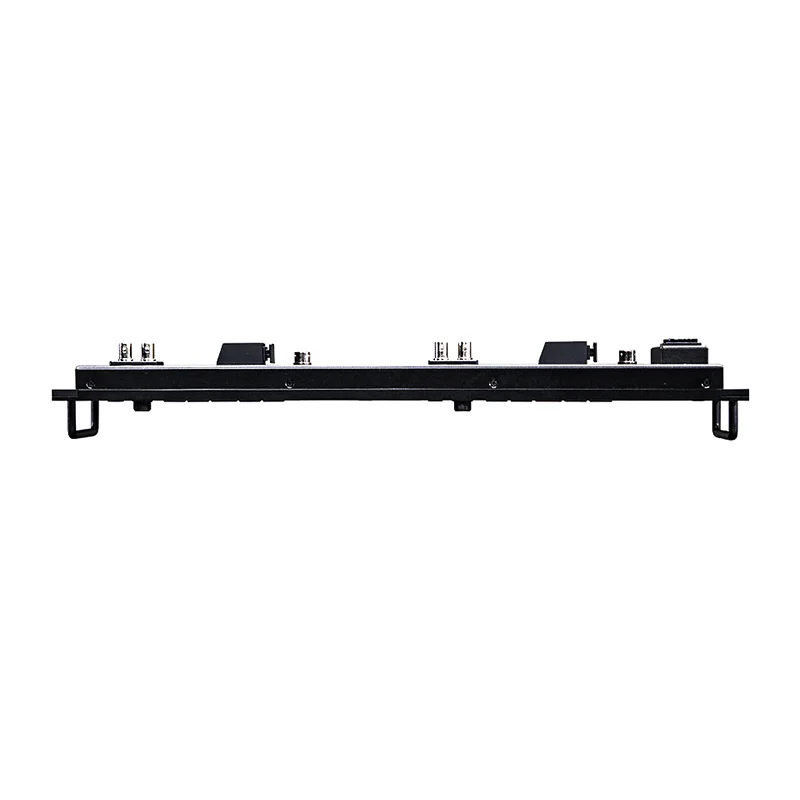

- Thanks to the advanced circuit and engineer design, the thinness of dual-display panel is only 0.95”.

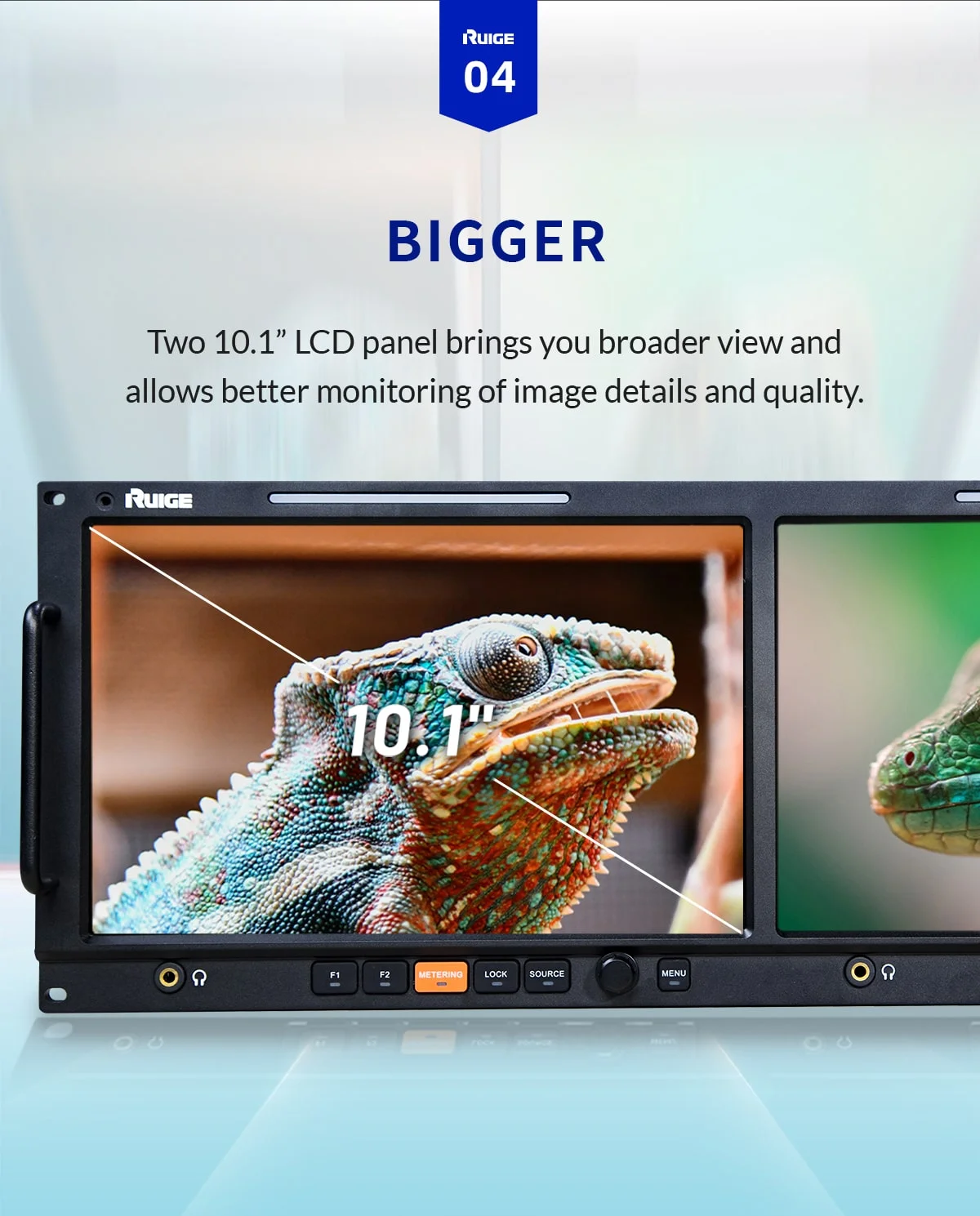

- Two 10.1” LCD panel brings you broader view and allows better monitoring of image details and quality.

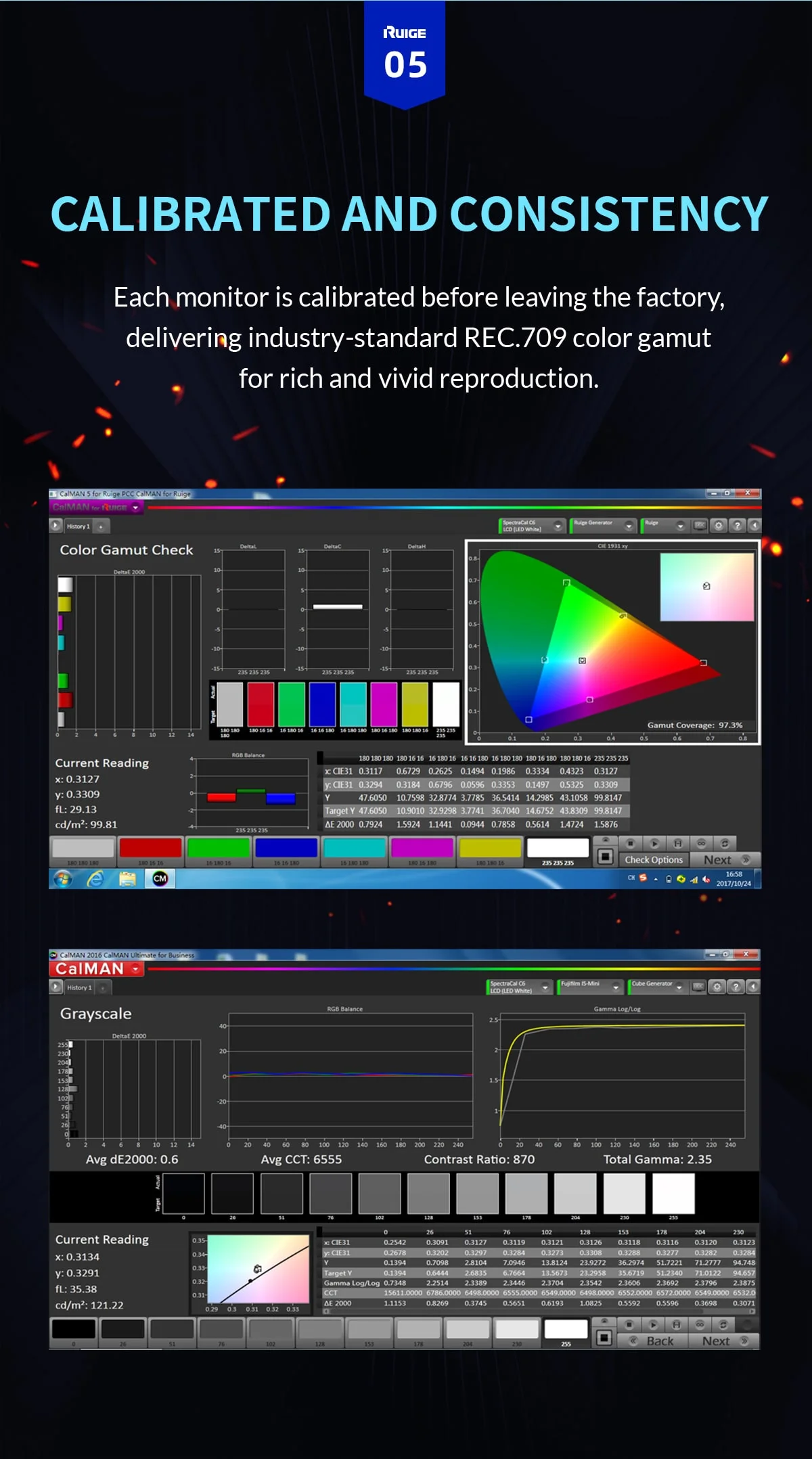

- Each monitor is calibrated before leaving the factory, delivering industry-standard REC.709 color gamut for rich and vivid reproduction.

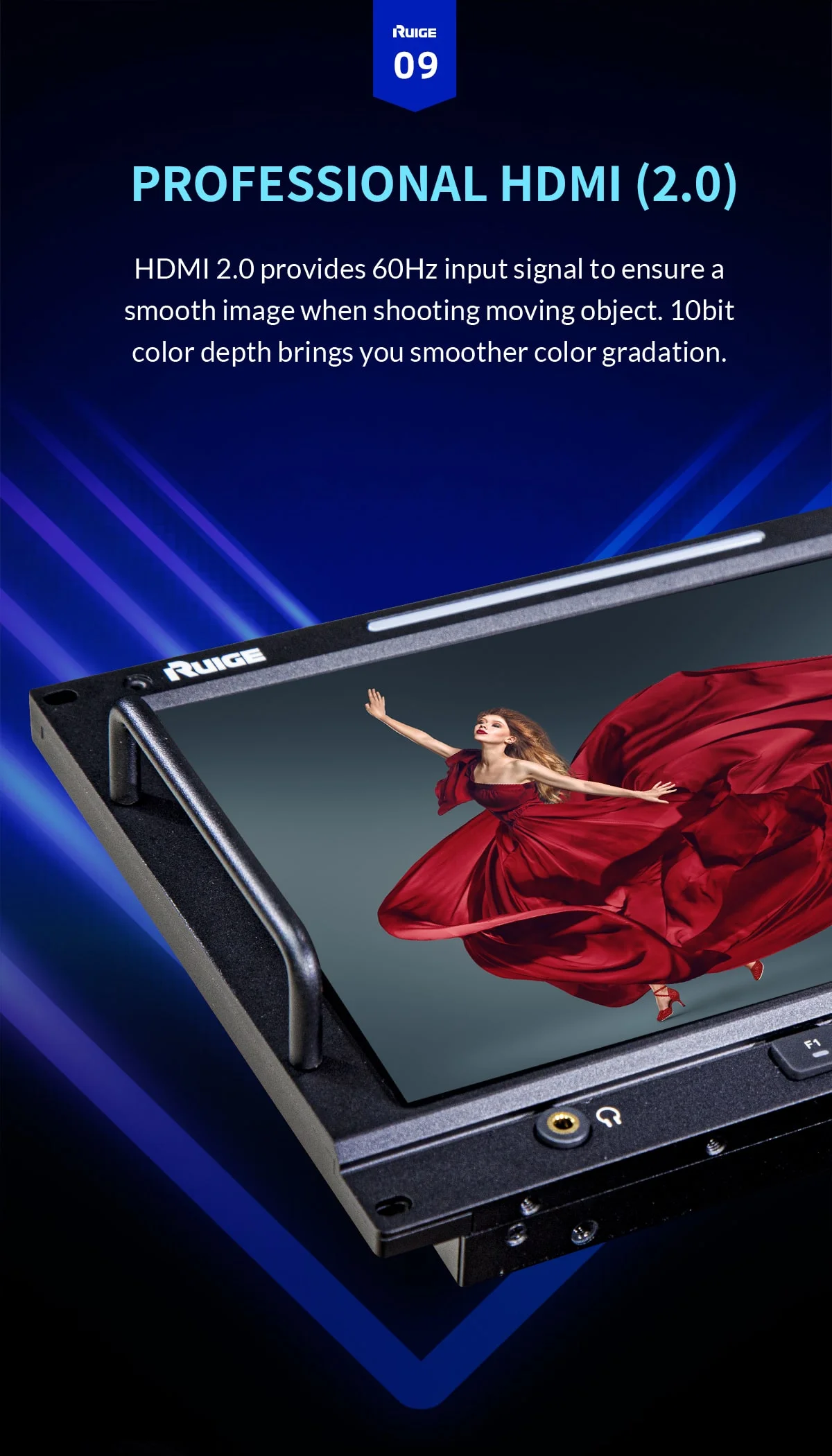

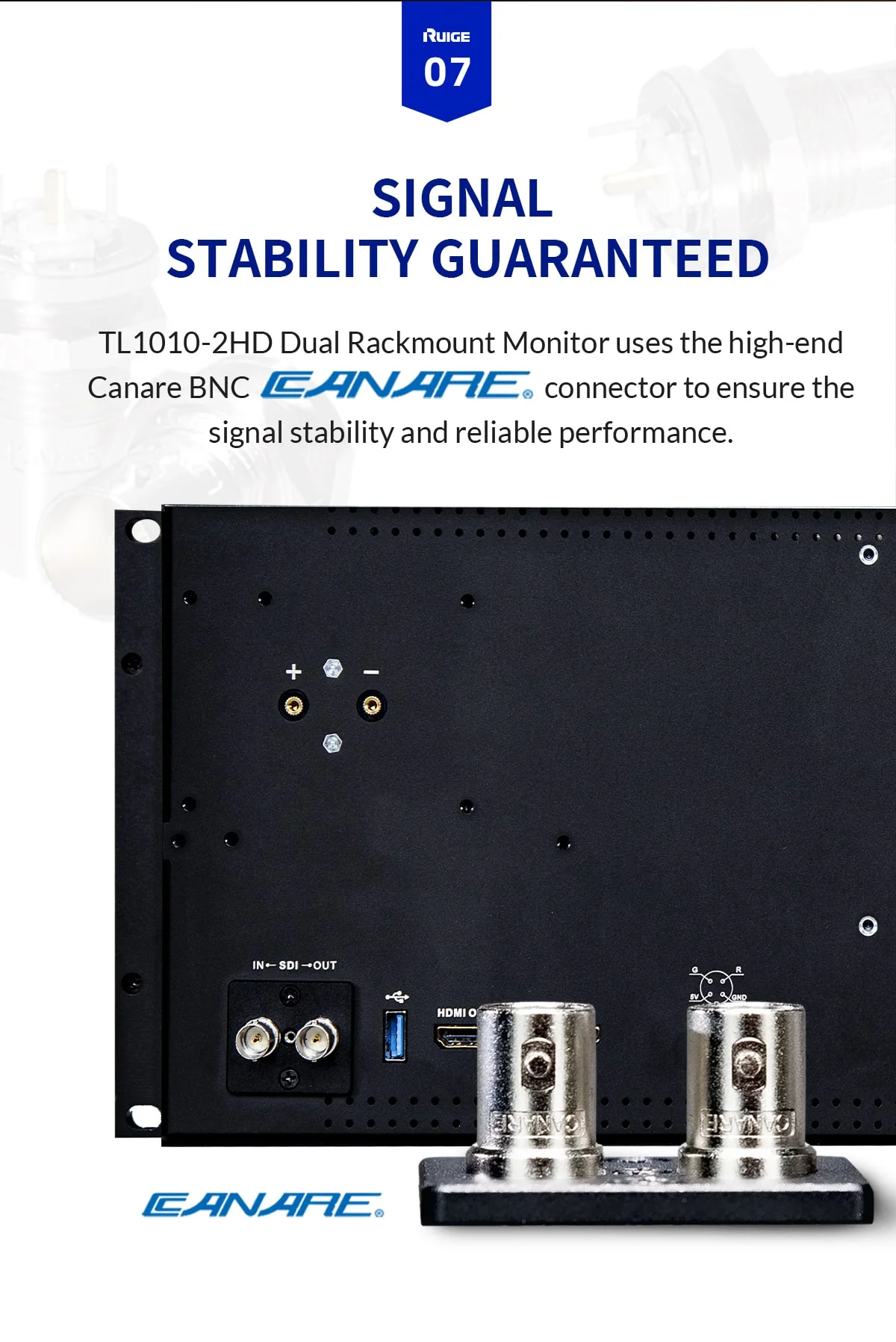

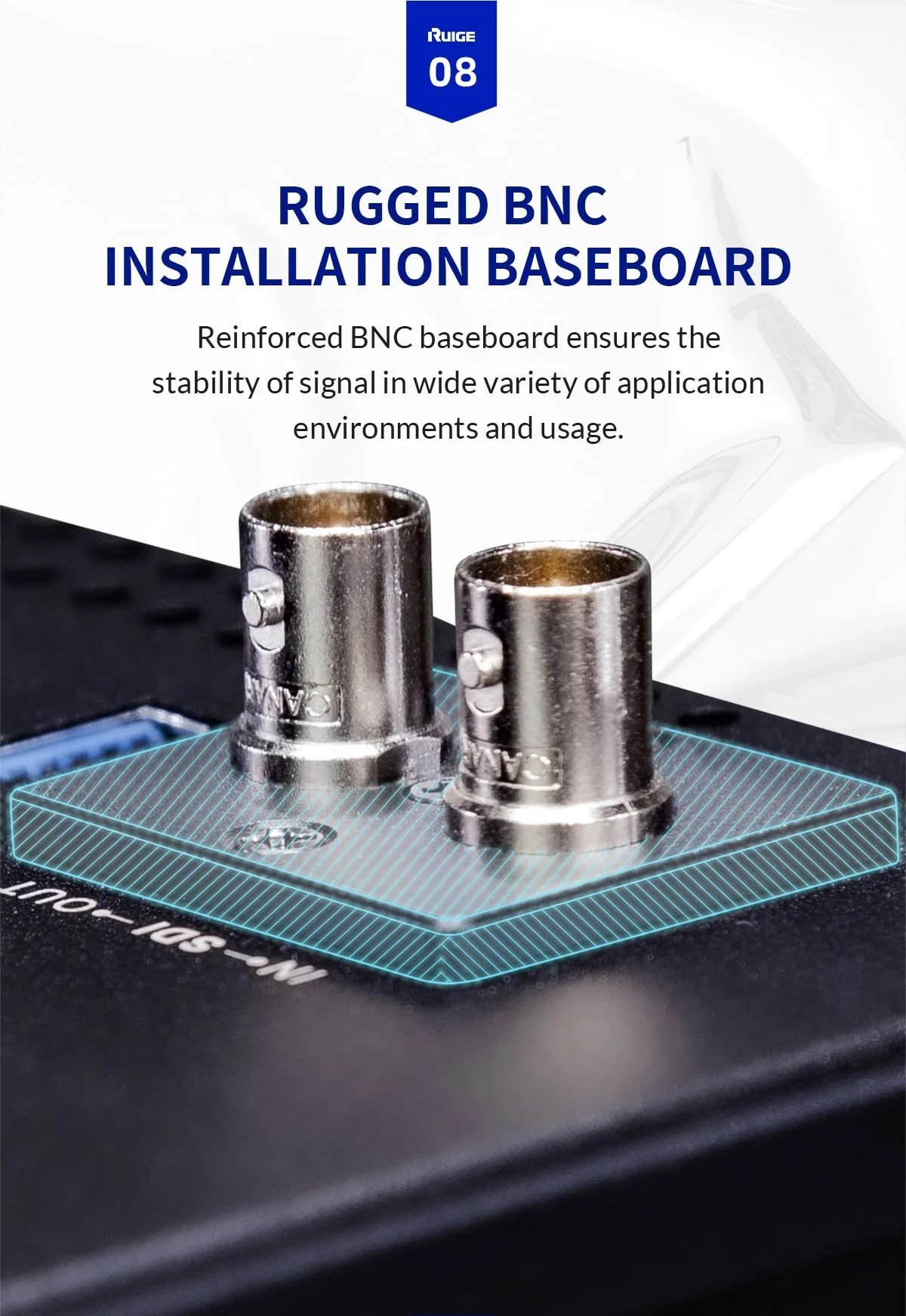

- Support 3G-SDI, HDMI2.0 video input and output interface to meet your higher video transmission needs.

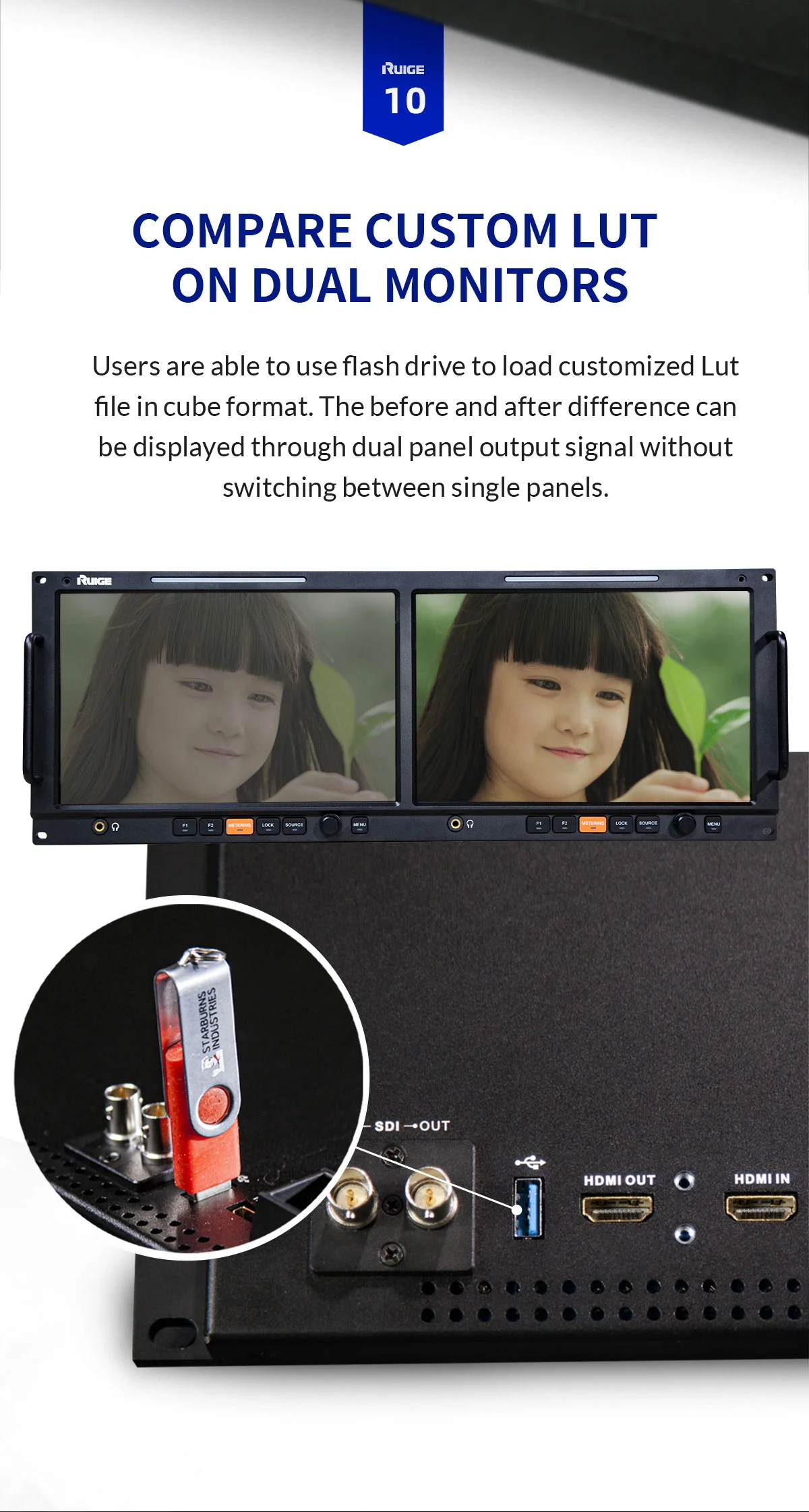

- Users are able to use flash drive to load customized Lut file in cube format. The before and after difference can be displayed through dual panel output signal without switching between single panels.

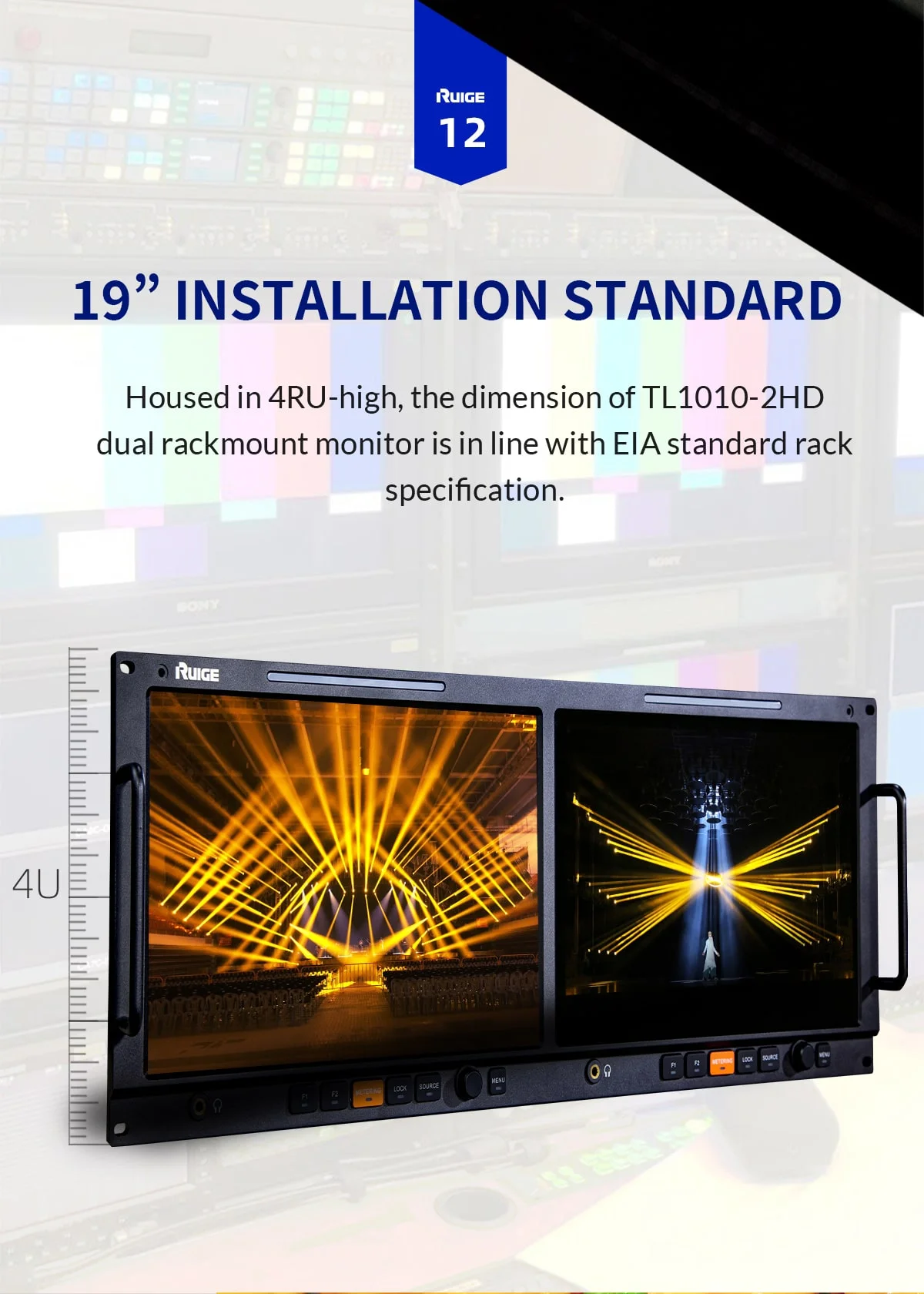

- Housed in 4RU-high, the dimension of TL1010-2HD dual rackmount monitor is in line with EIA standard rack specification.

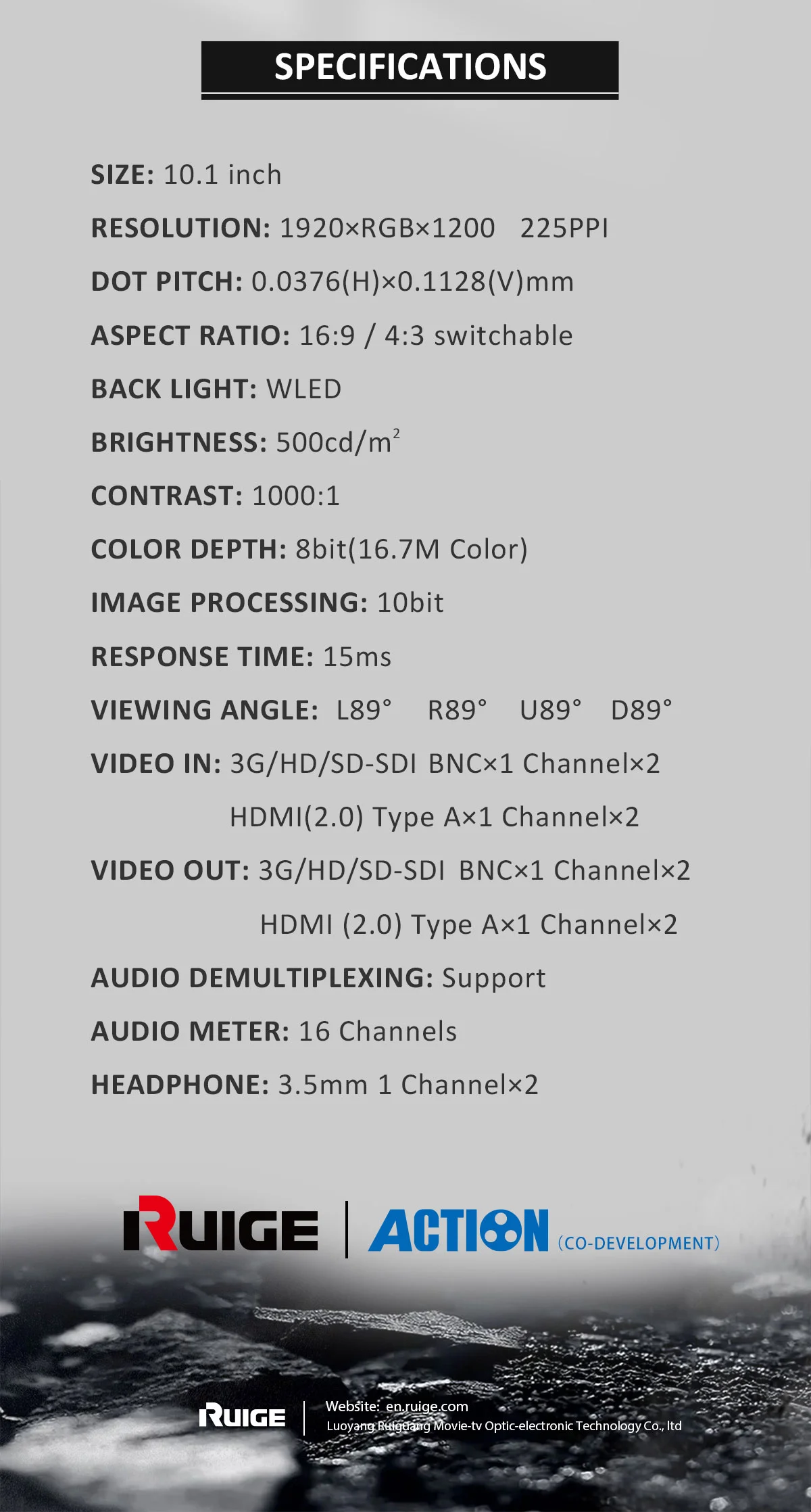

| Size | 10.1 Inch |
| Resolution | 1920×RGB×1200 225PPI |
| Dot pitch | 0.0376（H）×0.1128（V）mm |
| Aspect Ratio | 16:9 / 4:3switchable |
| BACK LIGHT | WLED |
| Brightness | 700cd/㎡ |
| Contrast | 900:1 |
| Color Depth | 8Bit(16.7M Color) |
| Image Processing | 10Bit |
| Response Time | 15ms |
| Viewing Angle | L/R178° , U/D178° |
| Color Mode | Rec.709 |
| HDMI | HDMI2.0 Type A×1 Channel×2 |
| 3G/HD/SD-SDI | BNC×1 Channel×2 |
| HDMI | HDMI2.0 Type A×1 Channel×2 |
| 3G/HD/SD-SDI | BNC×1 Channel×2 |
| Audio Demultiplexing | Support |
| Audio Meter | 16 Channels |
| Headphone | 3.5mm 1 Channel × 2 |
| HDMI | 480p/60、480i/60、576i/50、576p/50、720p(50/60)、1080i(/50/60)、1080p(24/25/30/50/60)、4096*2160p/24/50/60、3840*2160p 24/25/30/50/60 |
| 3G-SDI | 1080p(50/60) |
| HD-SDI | 1080i(60/59.94/50)1080p(30/29.97/25/24/24sF/23.98/23.98sF) 720p(60/59.94/50/30/29/25/24/23.98) |
| SD-SDI | 480/59.94i、576/50i |
| Input voltage | DC 12V |
| Power consumption（MAX） | ≤17.5W |
| Working temperature | 0-40℃ |
| Store temperature | -20-60℃ |
| Store humidity | 0%-90% No Condensation |
| Shell material | Aluminium Alloy |

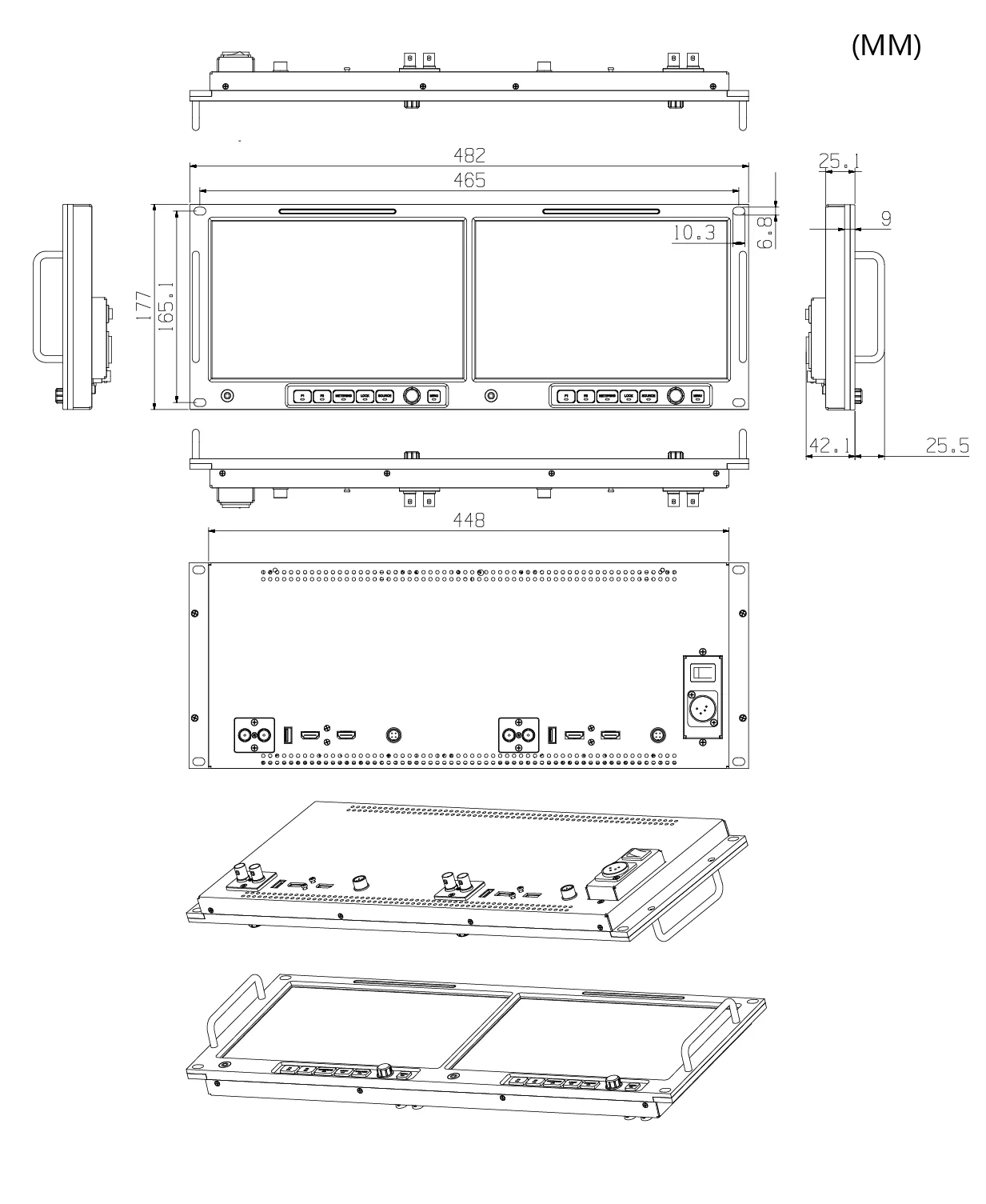

| Dimension（mm） | L482×H177×D42.1mm（Without guard rod） |
| Weight | About 1.7kg |
| Installing way | Rackmount |

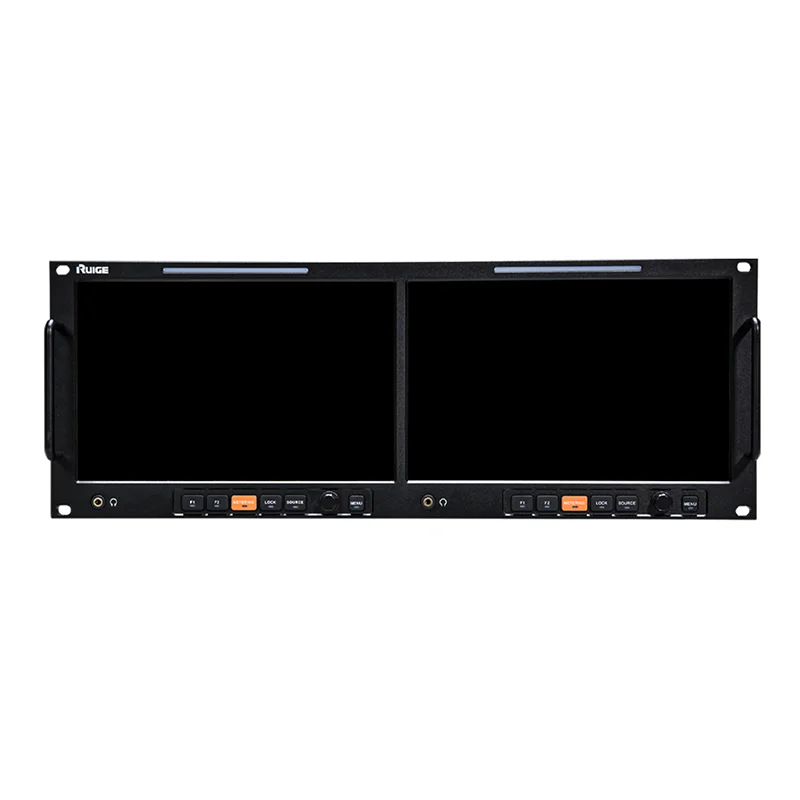

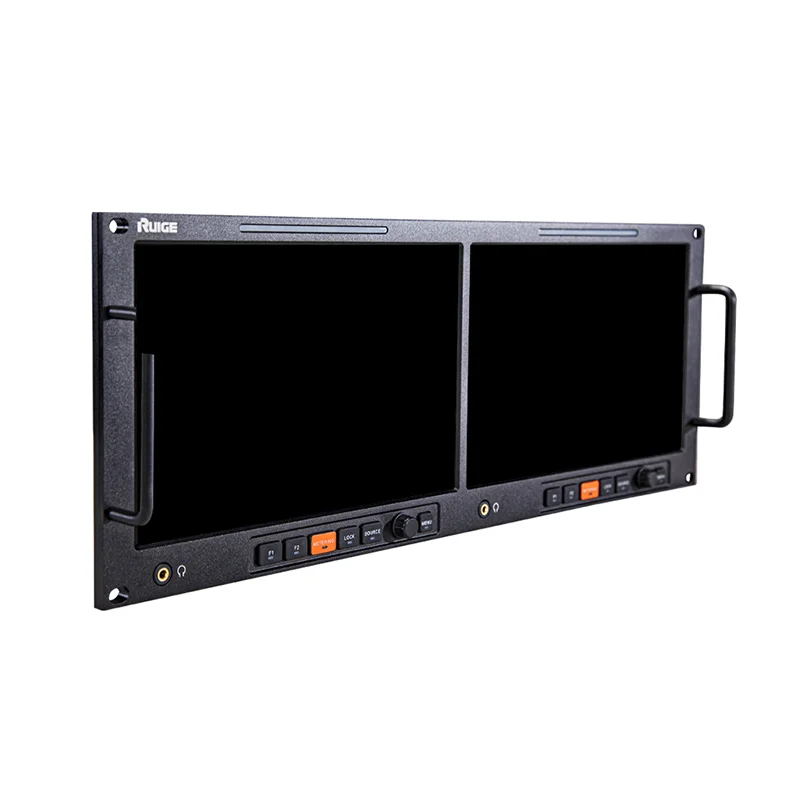

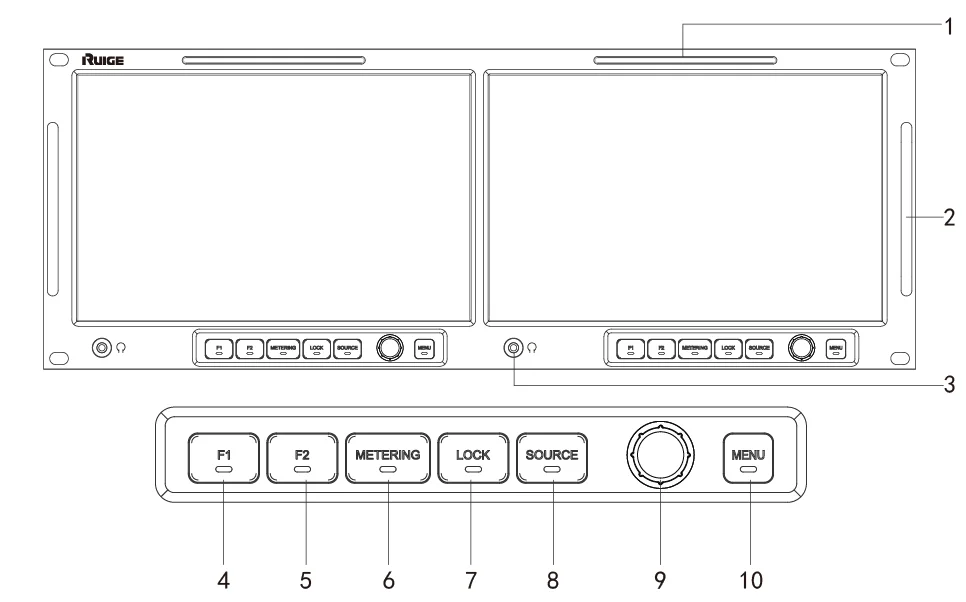

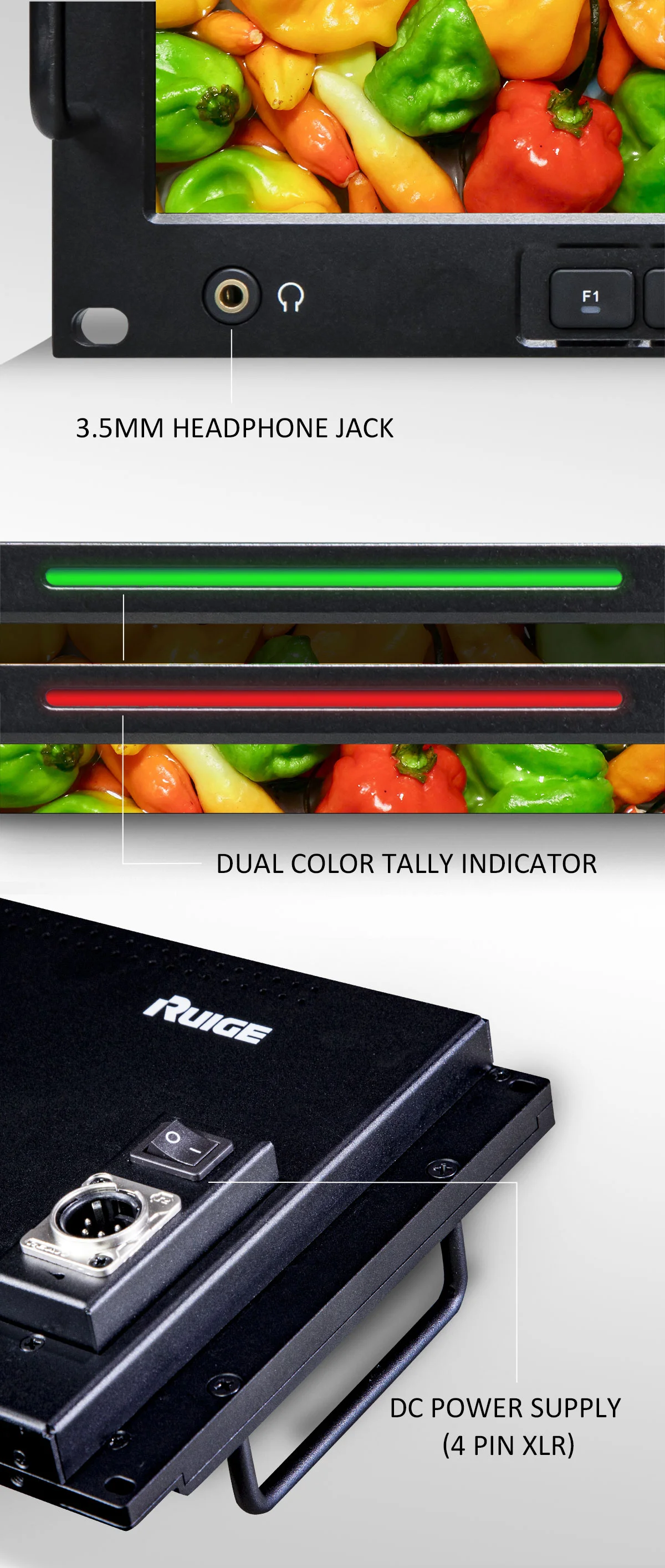

1. TALLY
2. Cabinet lug
3. 3.5mm Earphone jack

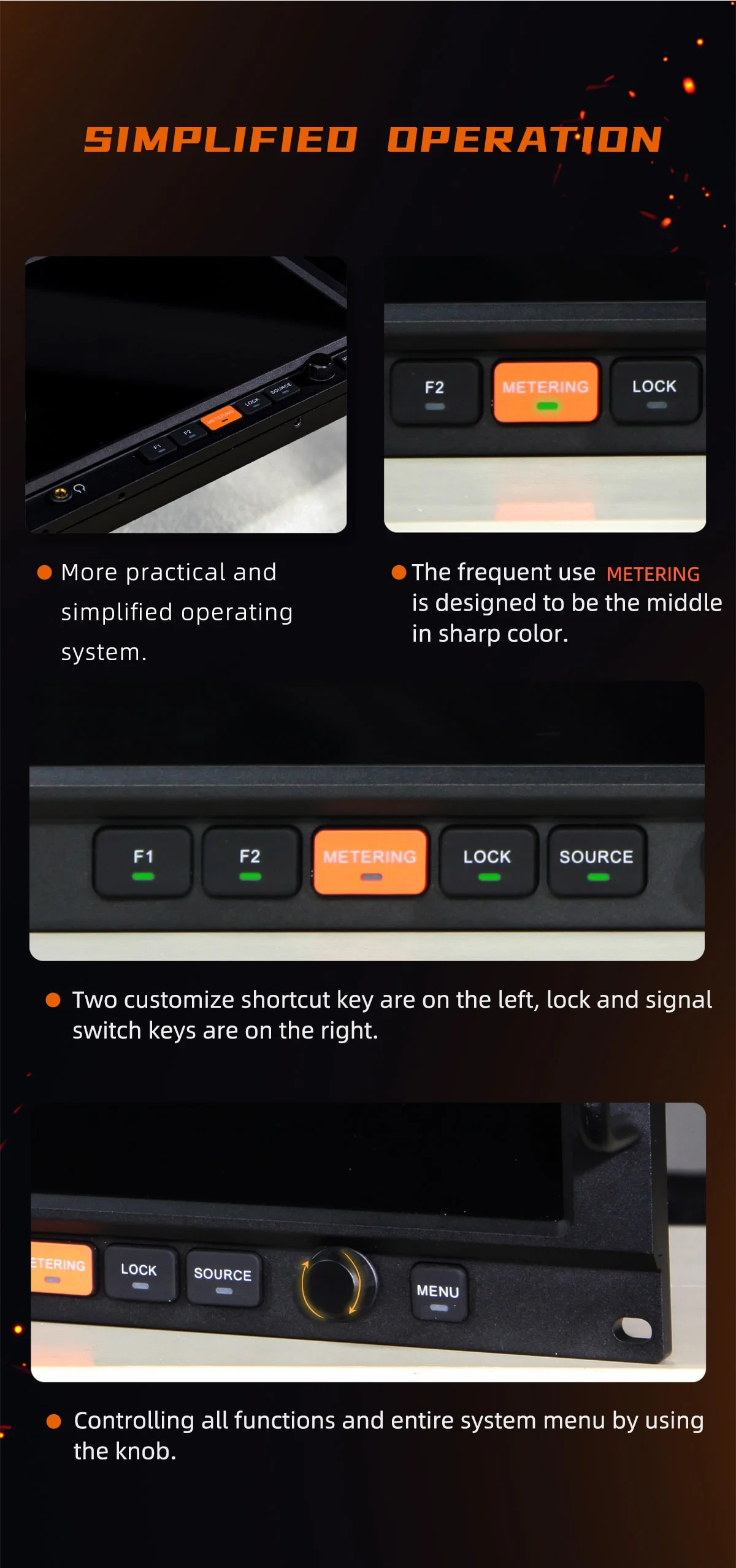

4. Shortcut key
5. Shortcut key
6. Metering key
7. LOCK (lock up buttons and knobs)
8. Source
9. Multifunctional knob button
10. MENU
F1\F2 is the system default shortcut key
F1(Waveform) F2(Aspect Marker)

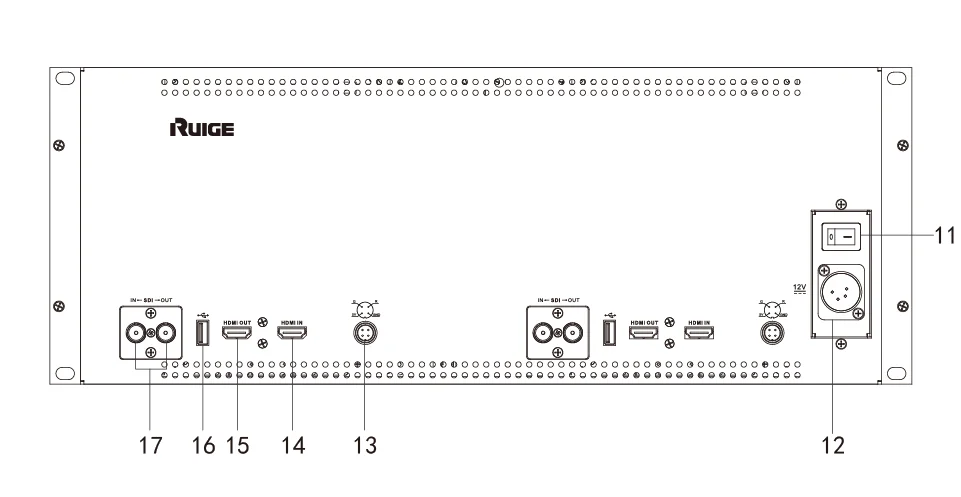

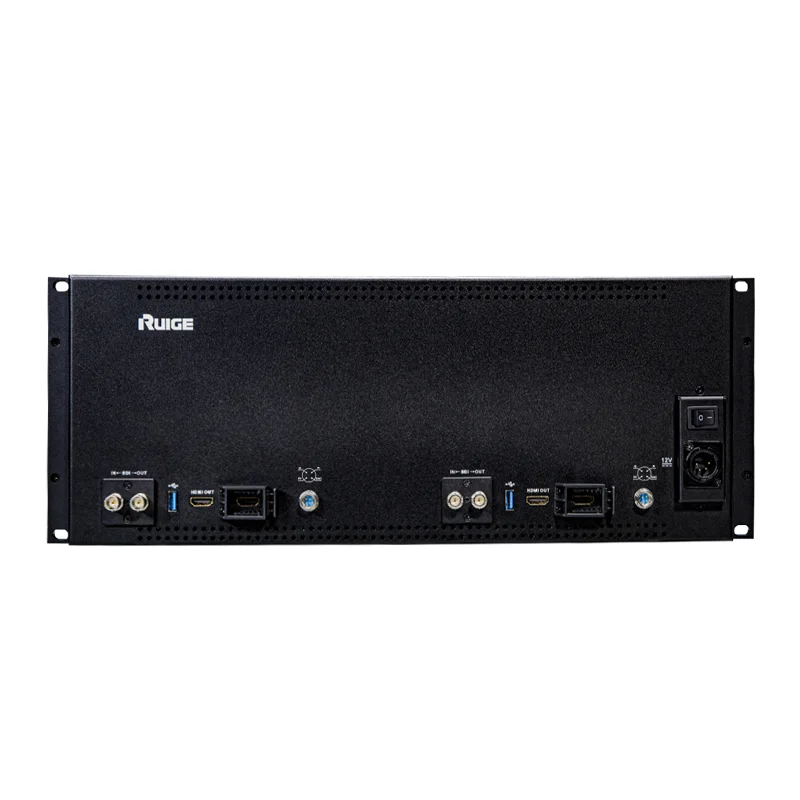

11. Power switch
12. DC 12V power input
13. TALLY Definition

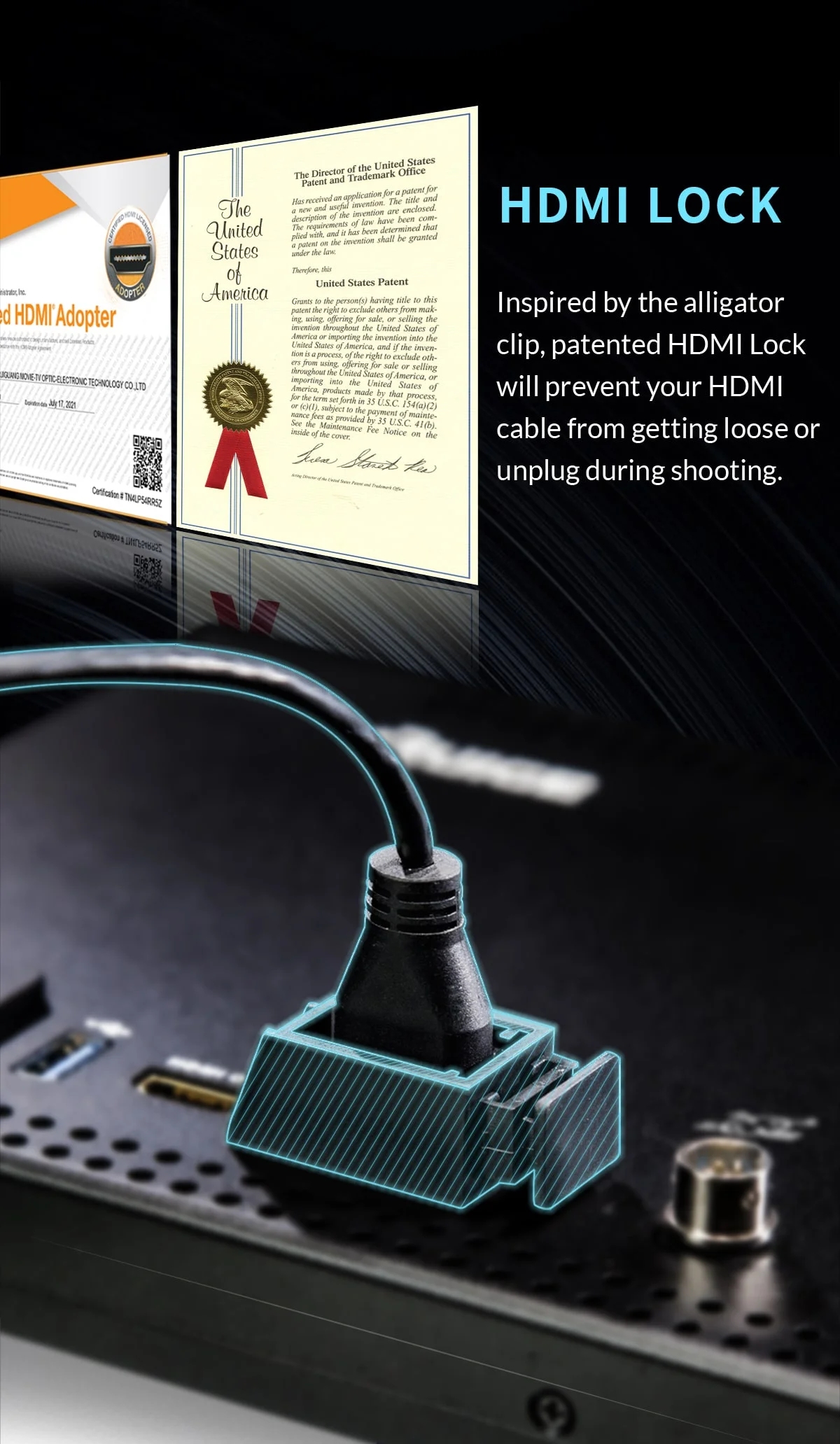

14. HDMI2.0 IN
15. HDMI2.0 OUT
16. USB
17. 3G-SDI IN/OUT
B/P/D Series Monitor internally built in 3D-LUT Color Management System in accordance with unified industry standards and it uses professional testing equipment to take systematic and accurate calibration for monitors to ensure the display indicator of monitor meet the tolerance range of color space standard .Therefore, it ensures each monitor has the accurate color restoration and the color of same style monitors is consistent to the maximum extent .
Usage:
In order to adjust for correct scanning users can choose different Aspect ratios. Selections are: 16:9, 4:3, Letterbox, Pixel-to-Pixel, Over Scan and Built-in Scan.
16 channels of embedded audio in the SDI video signal can be decoded and 8 selective channels can be shown on the screen at the same time. The Volume unit shows both VU and PPM.
Usage:
The Volume unit is used for measuring audio levels and calibration. This is helpful for making sure that audio levels are within technical requirements and specifications.

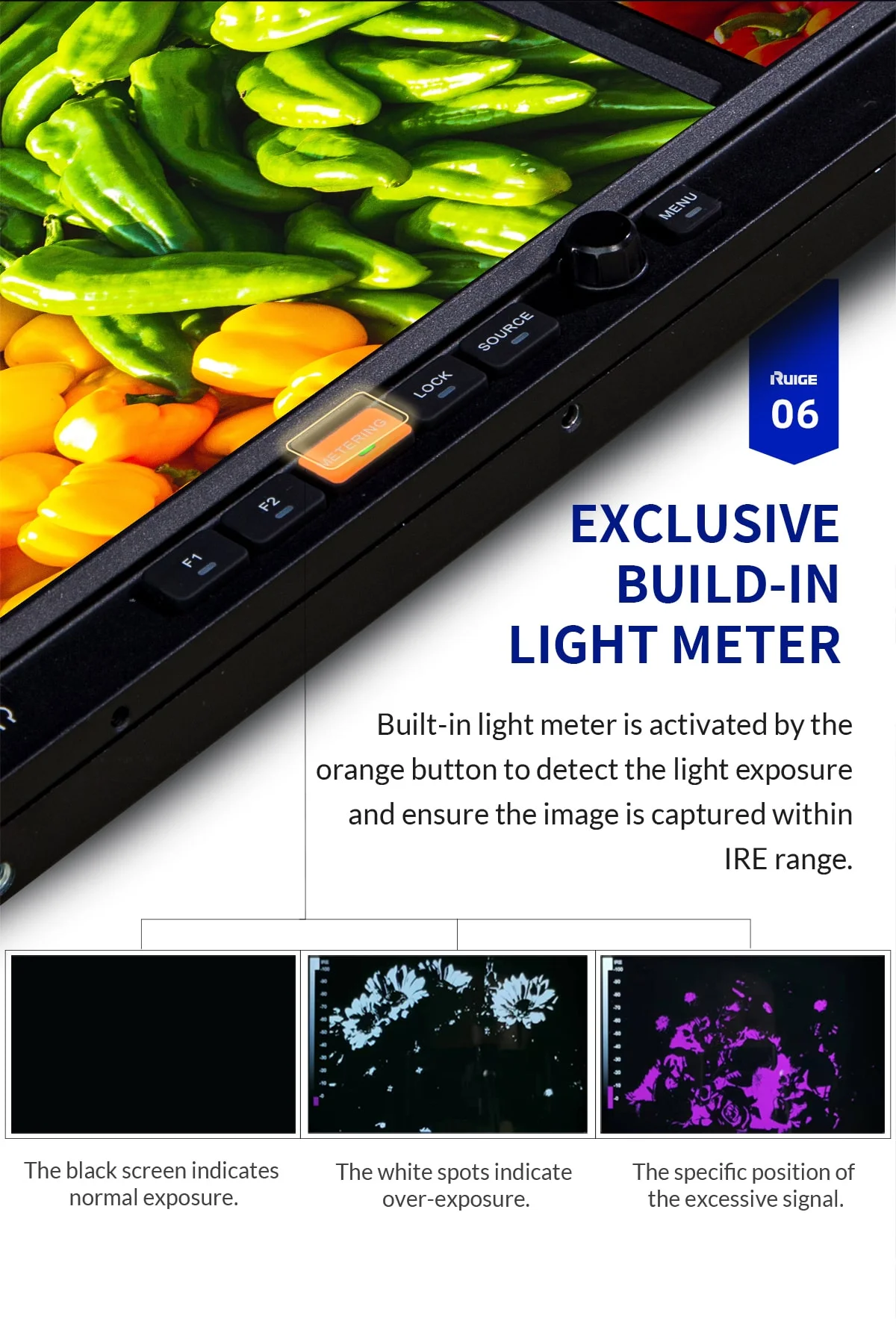

GPS in Video
Rapid positioning for out of range indicator

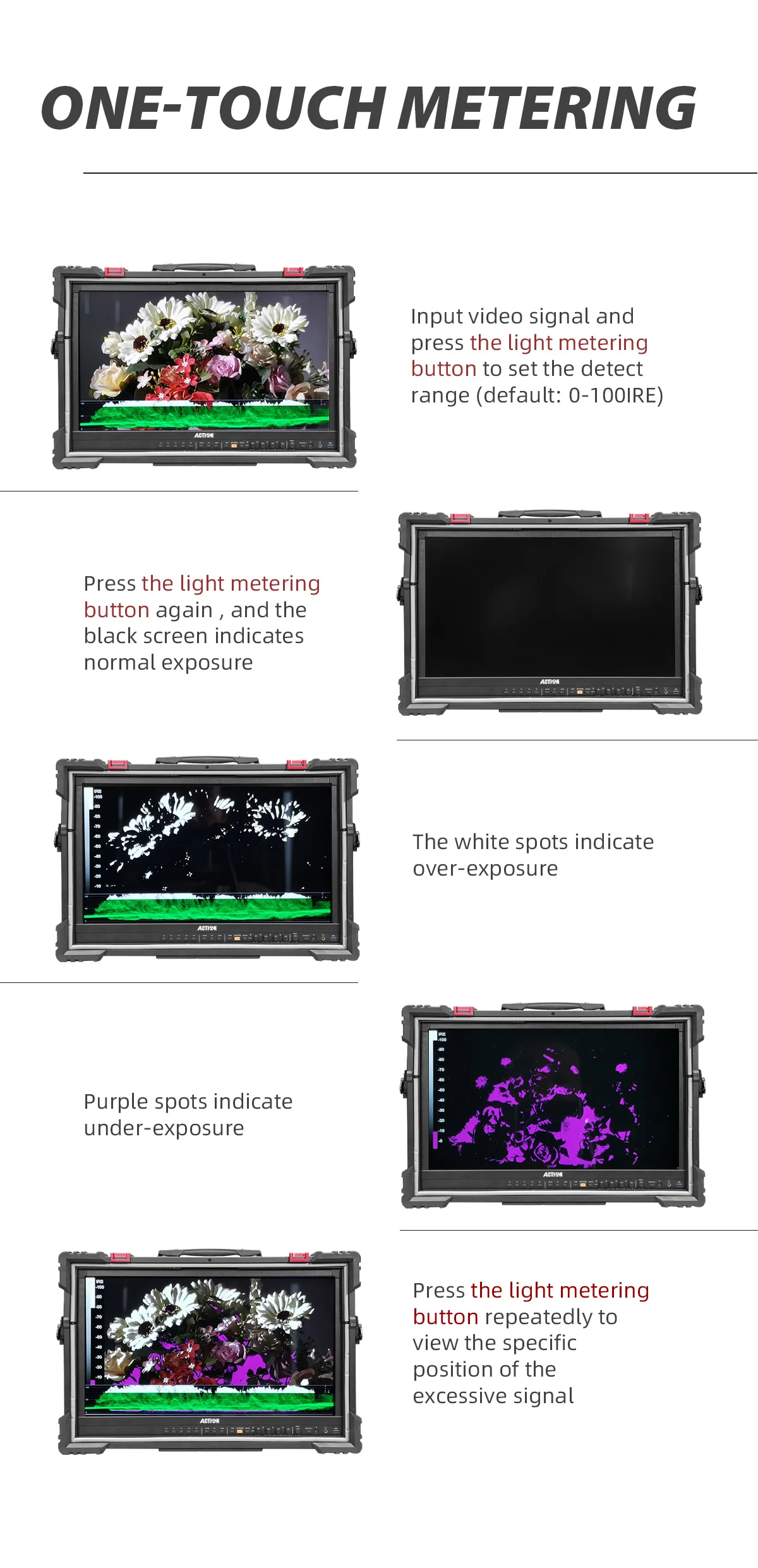

“Exposure analysis” function gives the user the ability to do fast out of range checks. When the image becomes more complex with out of range colors, it becomes too inconvenient to see.
The design inspiration of this function is based on x-ray machines and body scanners at airports. The black color indicates hard items and the softer items are represented with White and purple. These colors can be isolated in one second by contrasting with “Exposure Analysis” when switched on.
Case in point, security checks at airport are lacking due to subjective human factors. With Rapid positioning for out of range indicator allows for 100% accuracy. However, the end user has the freedom to not use this function for that artistic professional look.
Normal Image
Normal Exposure
Over Exposure
Under Exposure
Luminance levels can be represented using False Color on the screen. It represents the amount of exposure explained as color values ranging from Blue to Green to Yellow to Red.
Usage:
False Color is used to assist in setting the camera exposure. Blue (cool color) indicates a low exposure, a darker blue indicates an even lower exposure. Red (warm color) indicates a high exposure and a deeper red indicates an even higher exposure. Green and Yellow are in between. A scan feature allowing the image to be offset to the upper left revealing the Luminance Waveform on the upper right makes it easy to identify parts of the picture which may exceed standards.
A red peaking filter is used for Focus Assistance. It is represented as a red line around sharp edges. The edge color can be changed if desired; available colors are red, blue, green, yellow and white.
Usage:
Using a red peaking filter aids in the ability to quickly focus or refocus a shot. As the photographer zooms into focus his shot sharp edges will be represented as red lines.
Mono(chrome) displays only the Y portion of the video signal
Usage:
Human Eyes are more sensitive to the luminance signal therefore many viewfinders and small monitors have this function.
Usage：
Overscan is often used to programing for TV broadcast.
Usage:
Image overflow or cutoffs can be checked using this feature. This is helpful during “Pan and Scan” as image is prepped for various broadcast markets. Ruige monitors have selections for Safety Marker Scales, Title Scales, Transform Scales and Center Cross. This is helpful for composition during shooting or title placement.
The luminance waveform can be superimposed over picture (see below). The Y-axis represents the luminance level. There are two indicators; one at 100% and one at 700mv.
Usage:
The Luminance waveform is mainly used to read the value of the Y signal. This is helpful for setting Camera Iris levels.
Ruige’s unique Closed detection technology is applied to the monitor. It is based on the IRE measurement specification promulgated by the International Association of Radio Engineers and fully complies with international standards.
Only the valid images on the monitor screen are detected, and the over-standard signals in the highlights and dark parts of the video signal are displayed on the monitor screen in real time by means of color separation.

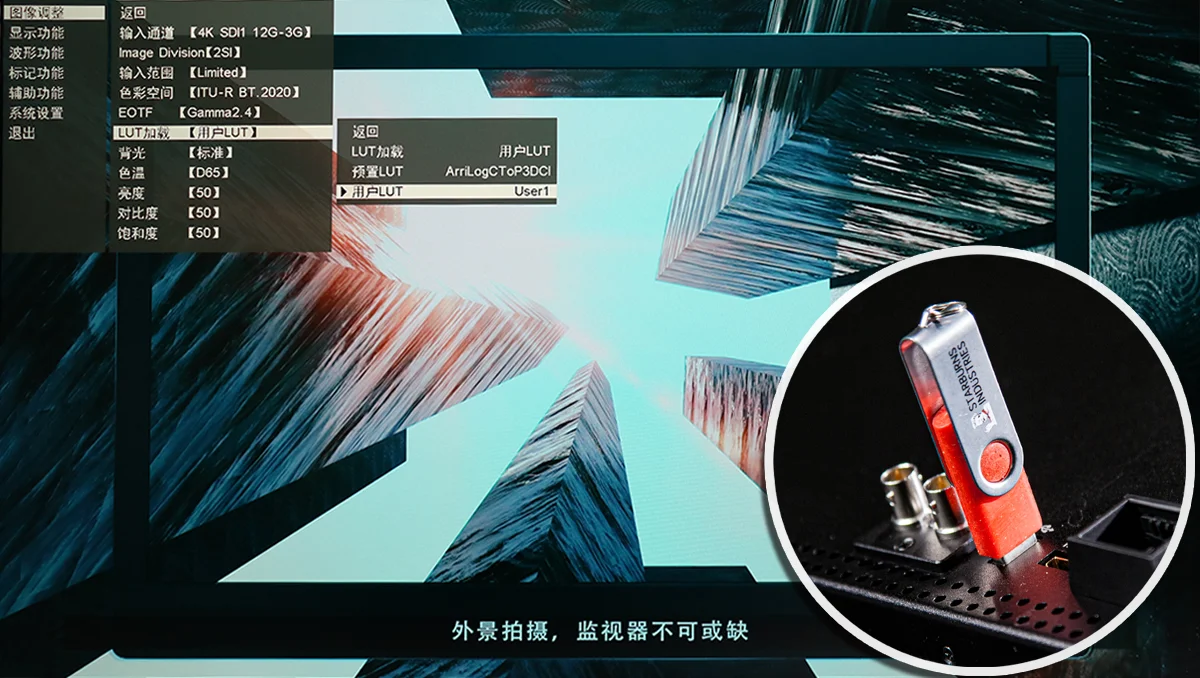

Custom 3D-LUT Cube files can be loaded through a USB flash drive to easily achieve pre-monitoring of different styles/technologies of LUT effects, further improving the production efficiency of live broadcast production, film, drama, commercial, music and documentary production.
