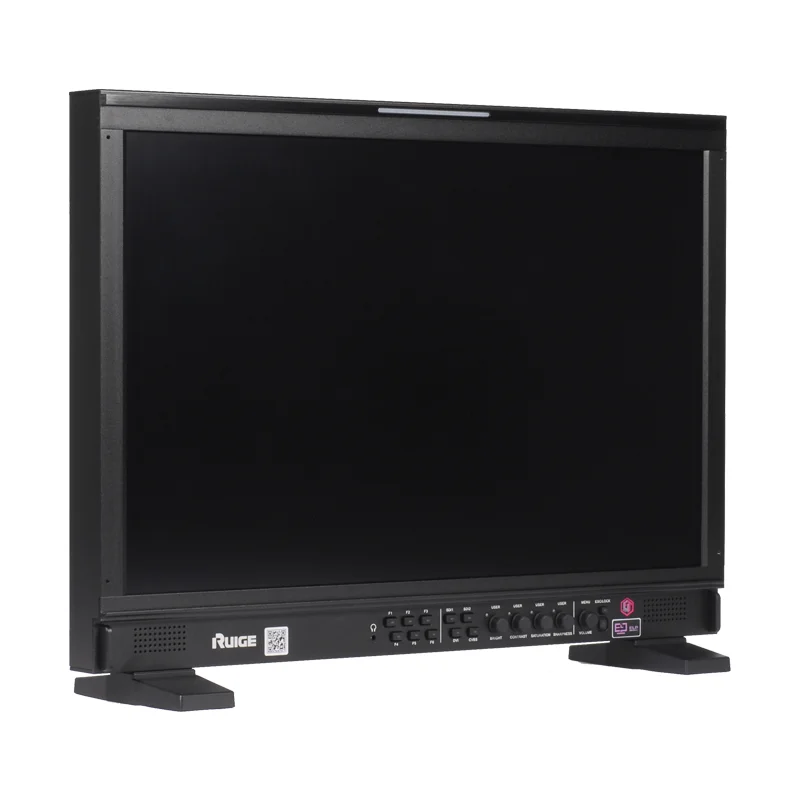

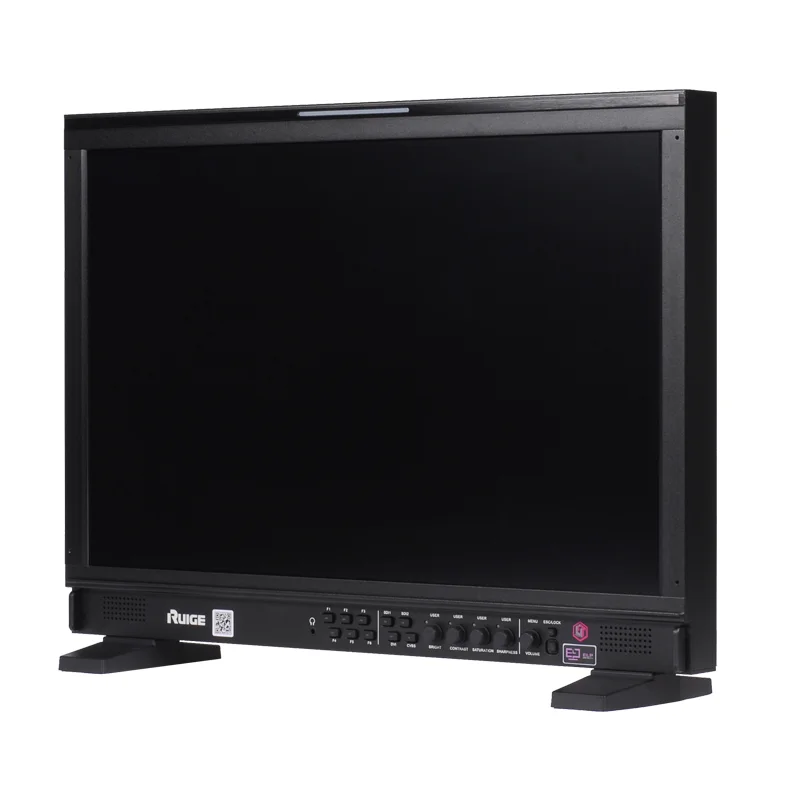

TL-B2400HD

Category:Monitor

Screen Size:24 inch

Features

  • 24” monitors use A+ IPS panel with wider color gamut range to ensure true color representation of REC709 standard colors with built-in 3D LUT (color look-up table)
Inquiry

TL-B2400HD TL-B2400HD

Broadcast monitors in addition to more powerful, The high precision and high standard of color will be stricter and more stringent than other video monitors.

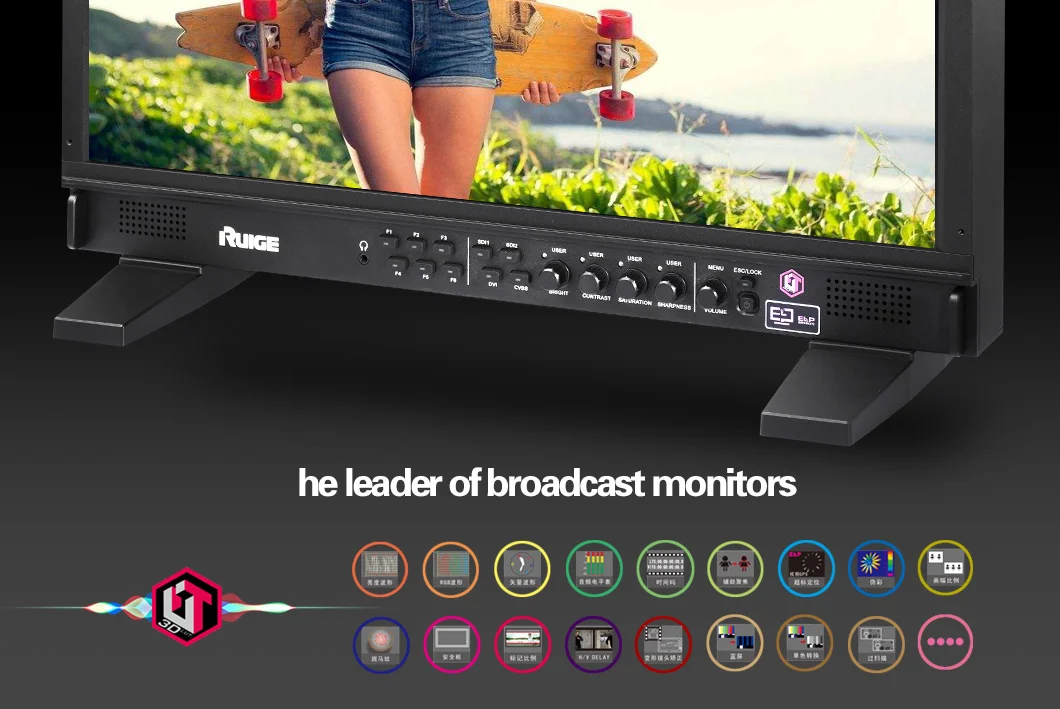

TL-B2400HDThe built-in 3D LUT calibration system and 23 professional functions make you satisfied for your needs of color and functions. TL-B2400HD

IPS hard panel has quicker response time, and displays more smooth moving image V178/H178 viewing angle can almost eliminate the dead viewing angel, color drift will not appear any more.

TL-B2400HD

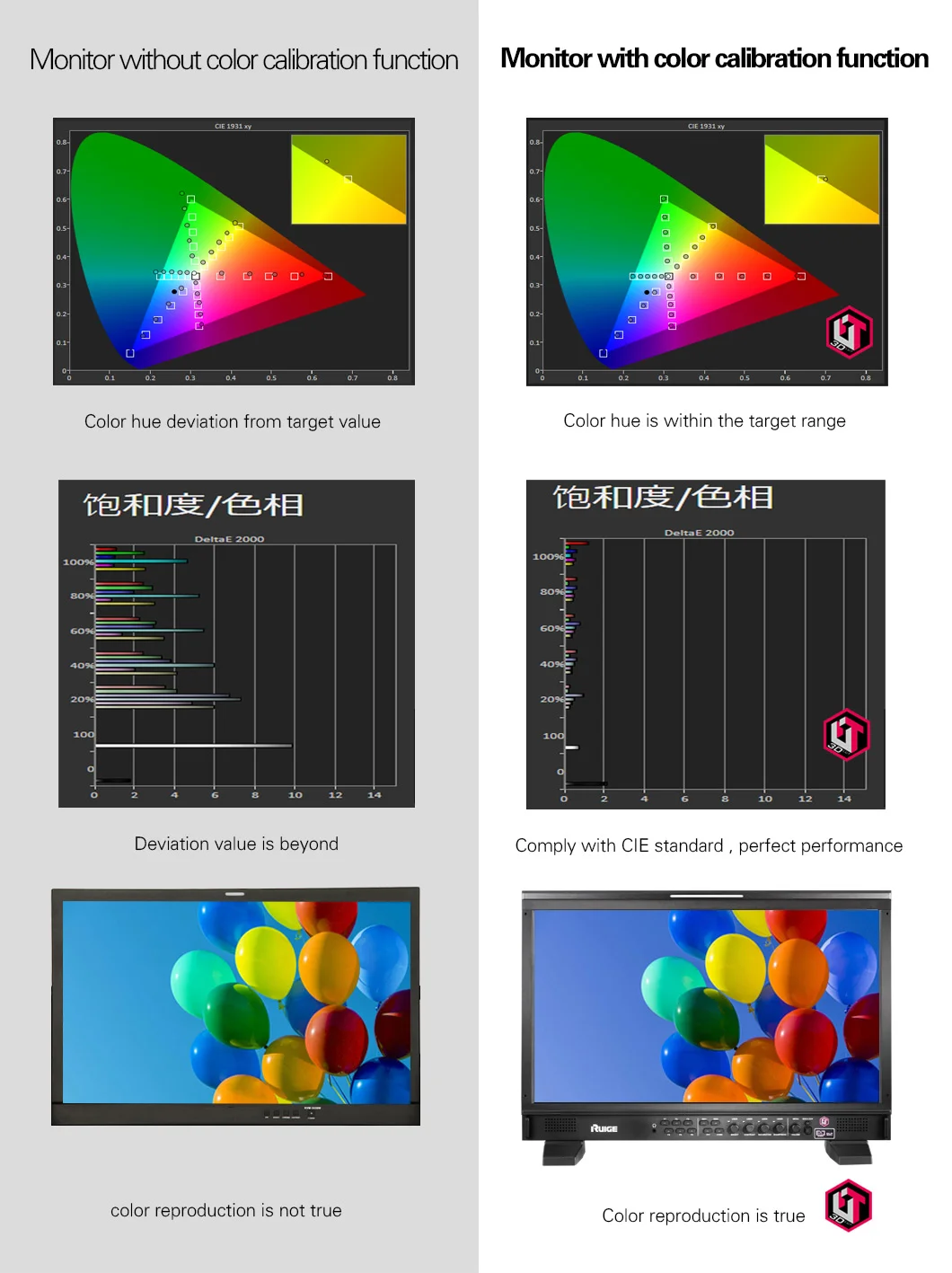

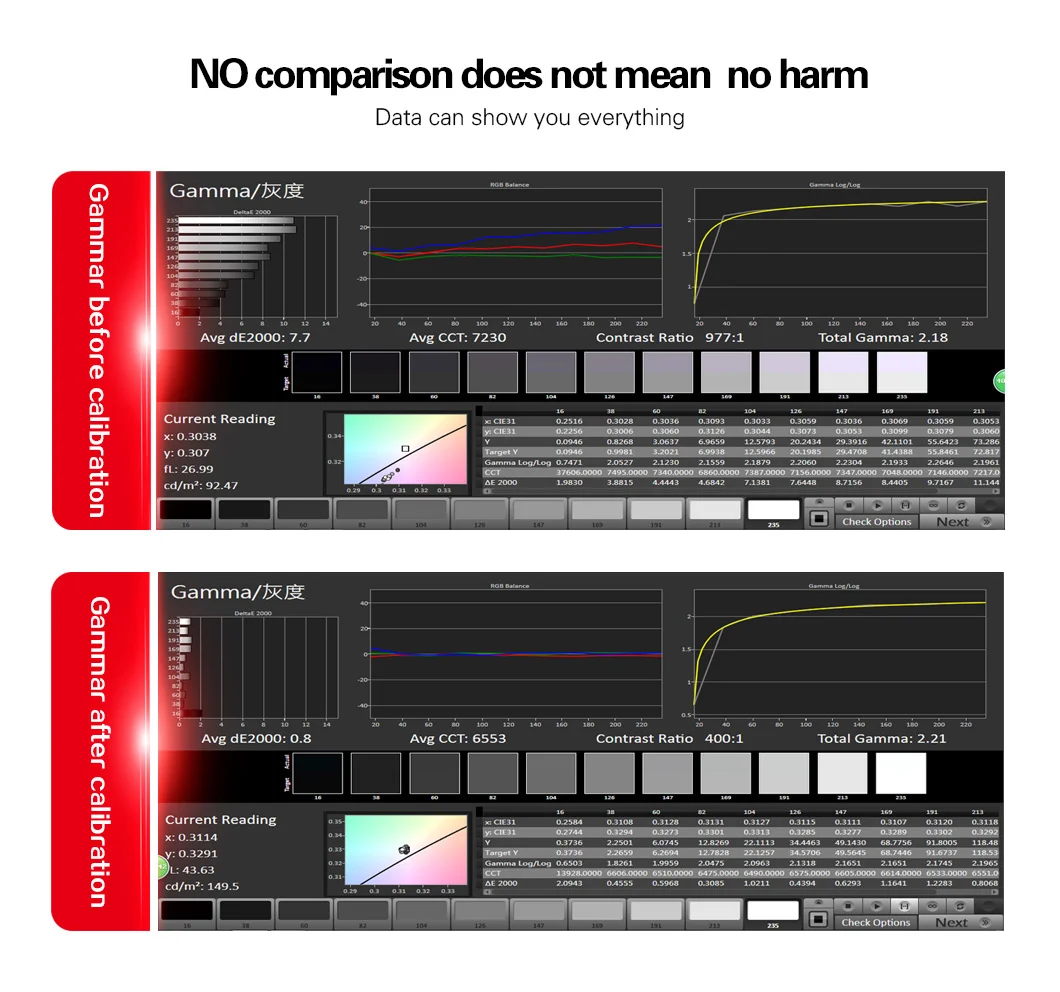

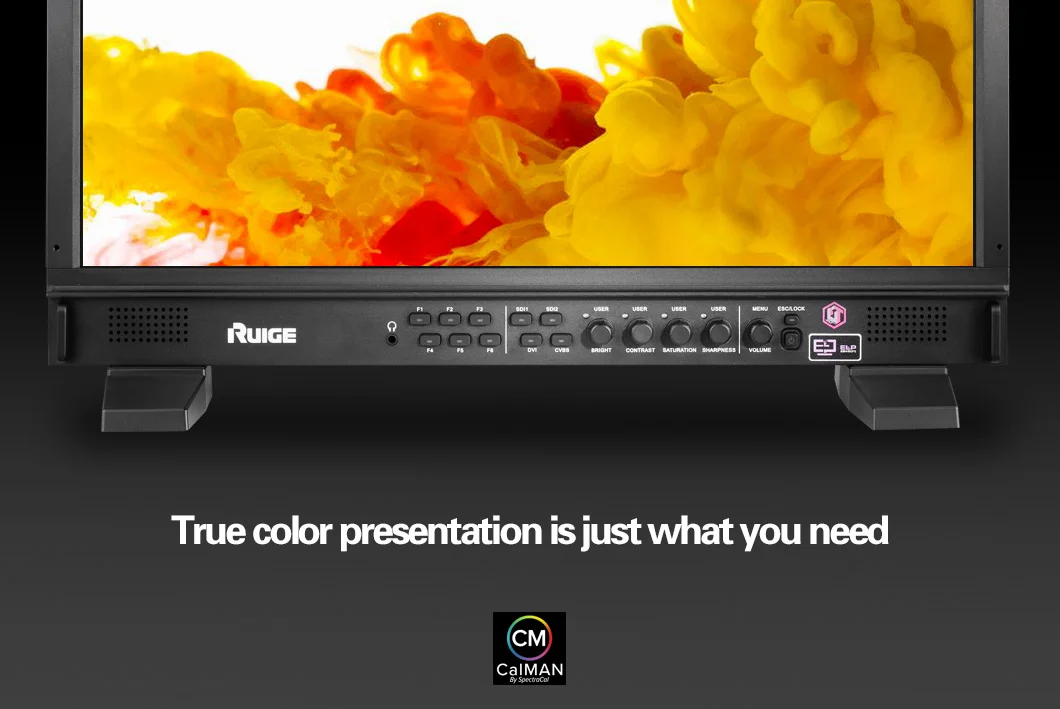

Each monitor is calibrated based on the software CalMan authorized by the US company SpectralCal

TL-B2400HD TL-B2400HD TL-B2400HD

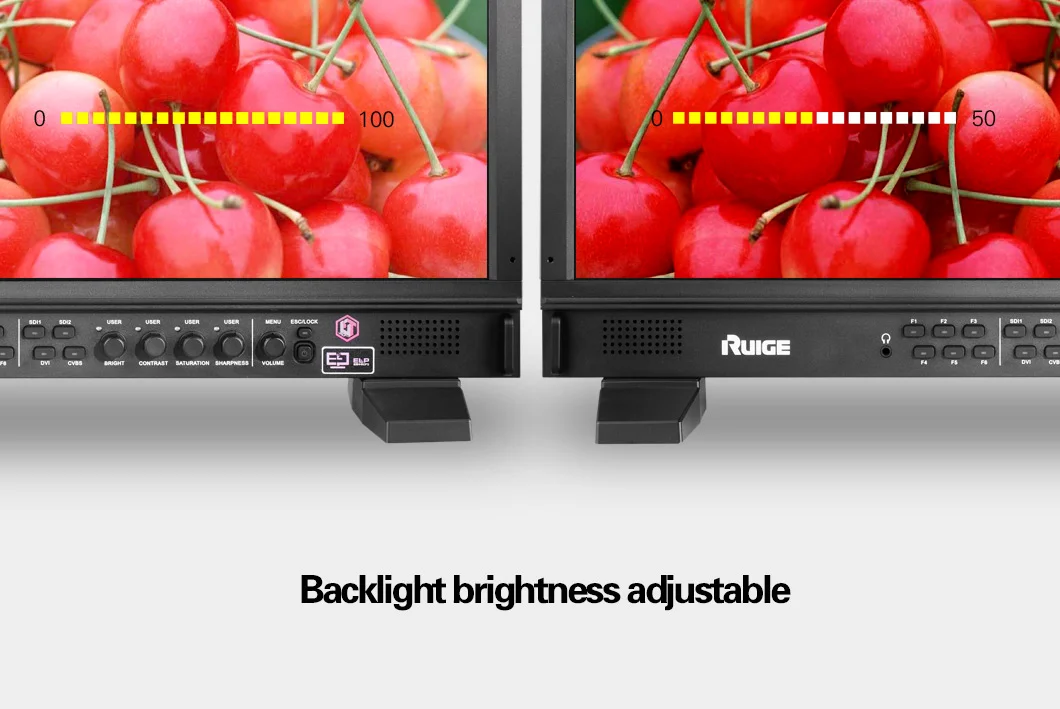

Based on the EBU (European Broadcasting Union) Provisions, A grad monitor for brightness should be 70-100cd/m2. But considering the influence of strong light on the monitor screen when outdoor shooting, Ruige set up backlight adjustment function to improve the brightness of the display scree, in order to be convenient for directors to observe the details

TL-B2400HD

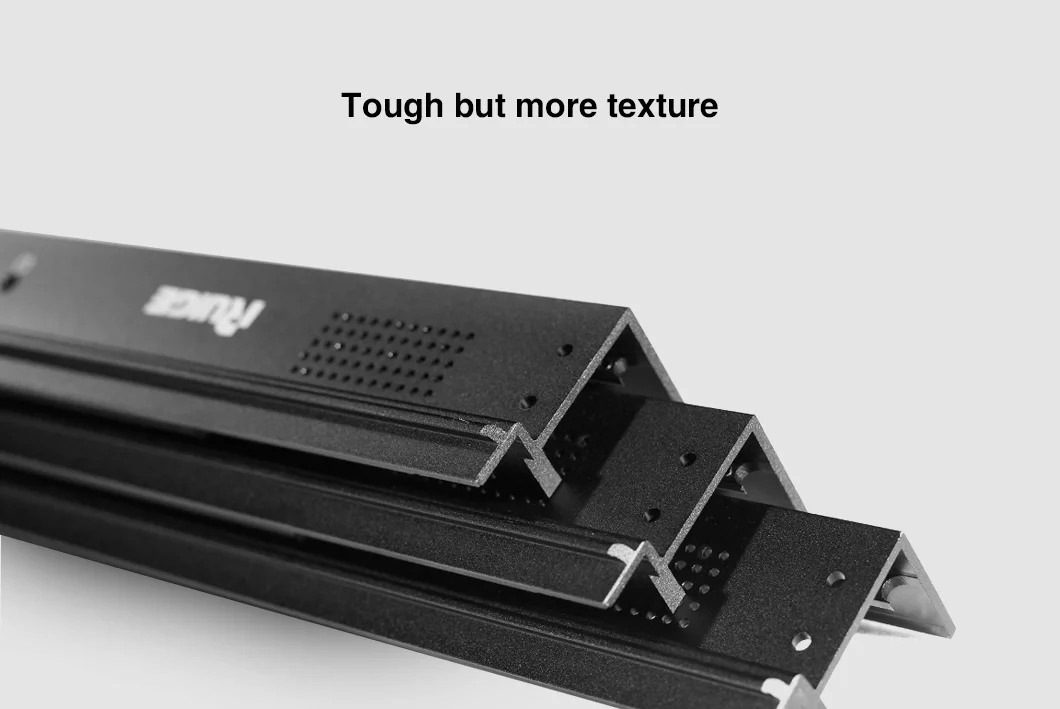

The ruige monitor case based on the Aluminum extrusion process makes product more strong and durable, also resolves the heat-dissipation issue. Inner parts are module design,  which greatly improves the product stability and makes it very simple for the after service.

TL-B2400HD

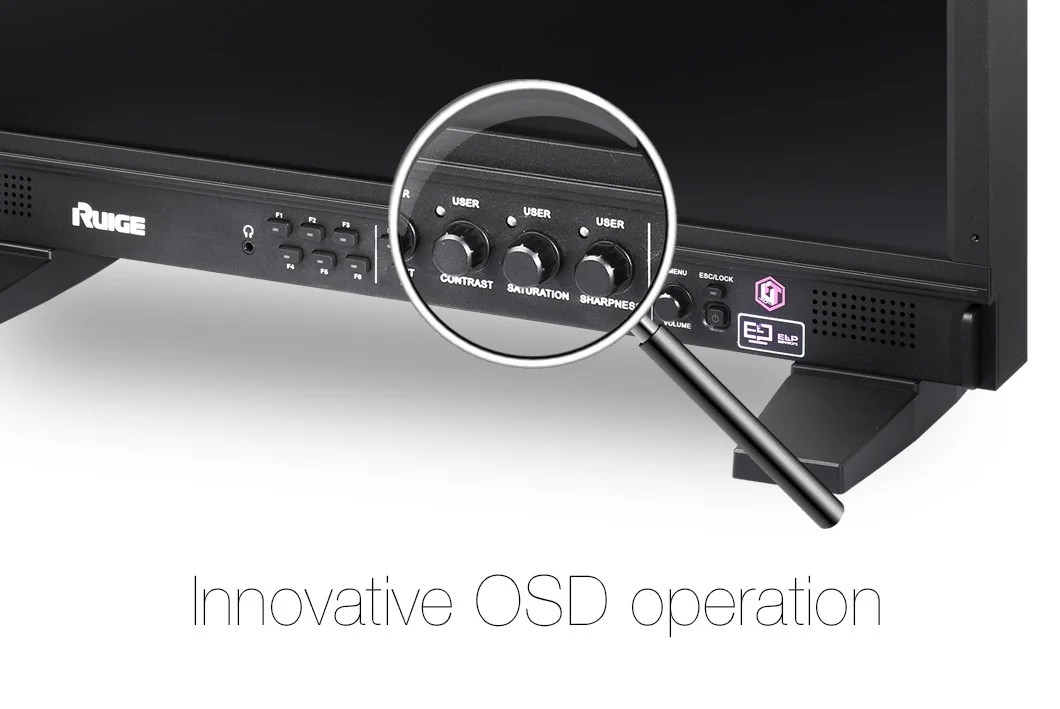

The Ruige monitor keeps the operation habits of the professional. One knob type coding switch with dual function, is the unique technical features of Ruige, will provide you with more convenient, more quick operation experience.

TL-B2400HD

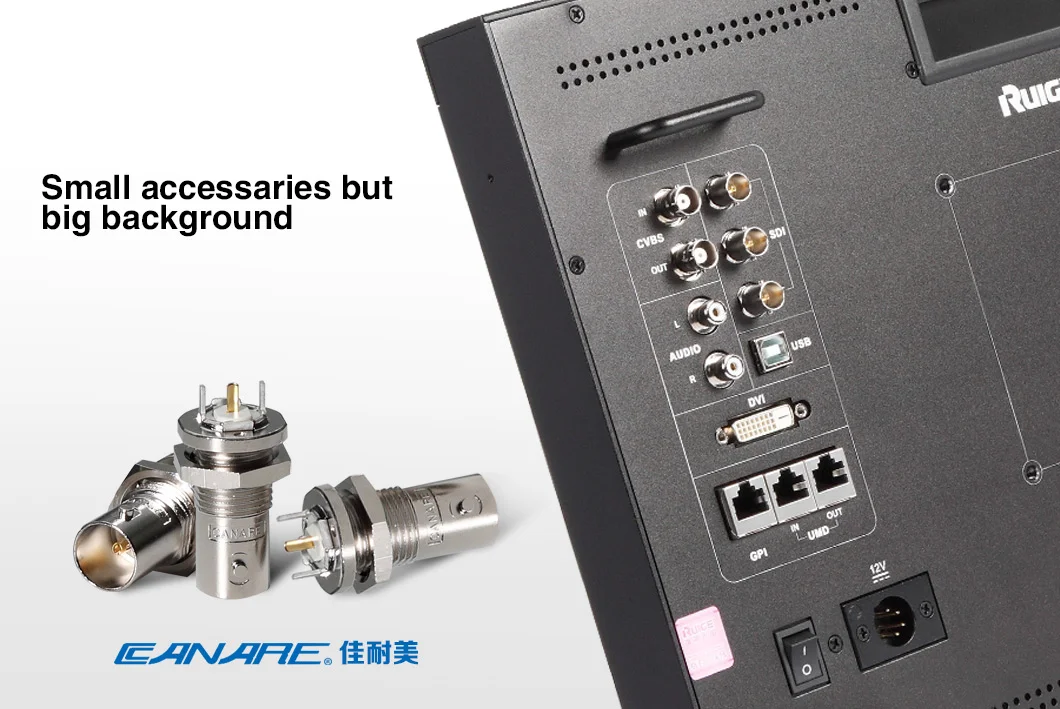

Use the professional Canare Connectors, this can make sure signal quality, mechanical locking structure avoids pins moving, which improves the reliability, the gold-plated pins can keep the good quality even after using few years, and the Canare Unique long body design can ensure the convenience of removal.

TL-B2400HD TL-B2400HD

Size 24 inch
RESOLUTION 1920×RGB×1080
DOT PITCH 0.2745(H)×0.2745(V)mm
ASPECT RATIO 16:9 / 4:3 Switchable
BACK LIGHT White LED
BRIGHTNESS(MAX) 250cd/m2
CONTRAST(MAX) 1000:1
COLOR DEPTH 8Bits(16.7M Color )
IMAGE PROCESSING 10Bits
RESPONSE TIME 6ms
VIEWING ANGLE H178° / V178°
CVBS BNC×1
3G-SDI BNC×2
HDMI HDMI×1
CVBS BNC×1
3G SDI BNC×1
Analogue Audio Input RCA 1 line(dual channel)
Audio demultiplexing Support
Audio meters 16 channels (Maximum 8 channels can be displayed at one time)
Speakers 1×8Ω/3W (front)
Headset Support
CVBS NTSC、PAL
HDMI 480p/60、480i/60、576i/50、576p/50、720p(50/60)、1080i(/50/60)、1080p(24/25/30/50/60)
3G-SDI 1080p50/60
HD-SDI 1080i/60/59.94/50、1080p/30/29.97/25/24/24sF/23.98/23.98sF、720p/60/59.94/50
SD-SDI 480/59.94i、576/50i
Input voltage 12V DC 4 pin XLR
Power consumption(MAX) ≤45W
Working temperature 0-40℃
Store temperature -20-60℃
Store humidity 0%-90% No Condensation
Shell material Aluminium-magnesium Alloy

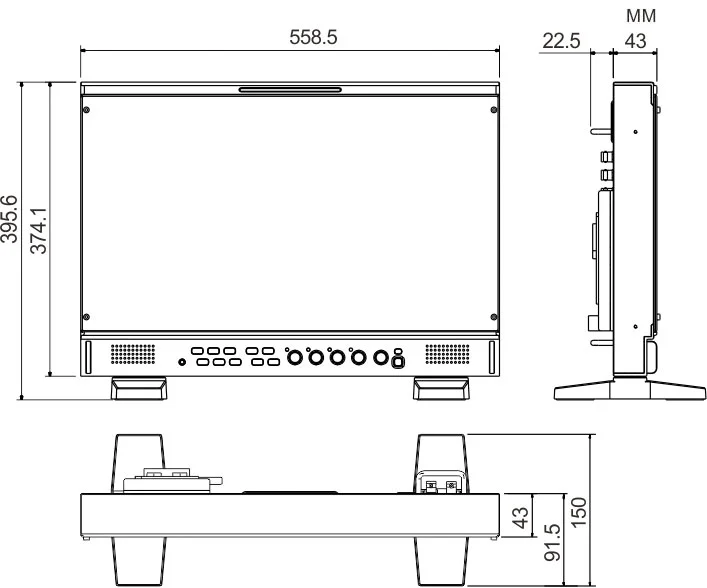

Dimension(mm) 558.5(L)X389.5(H)X150(W)
Weight 5.7kg

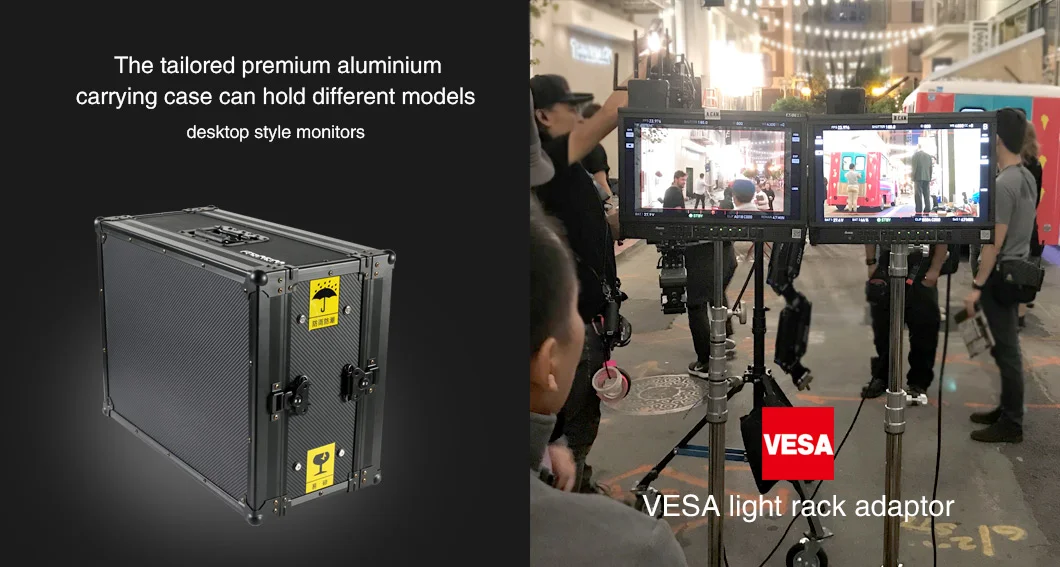

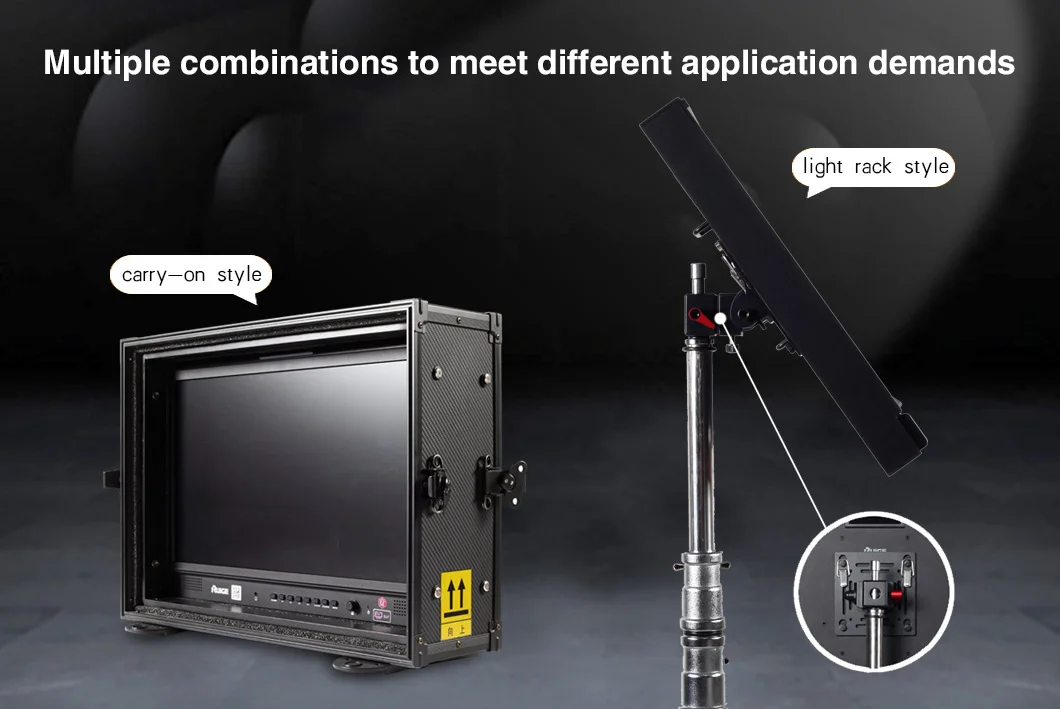

Installing way Desktop or VESA mount
VESA connection port 100mm×100mm
function setting3d lut loadingAnamorphic De-squeezeASPECT RATIOAUDIO METERBATTERYBLUE ONLYDYNAMIC UMDELPfalse colorfocusgpi controlhv delaylog conversionmarker scalemonoover scanptprgb wave formsafty locksafty markertime codevectorwave formzebra

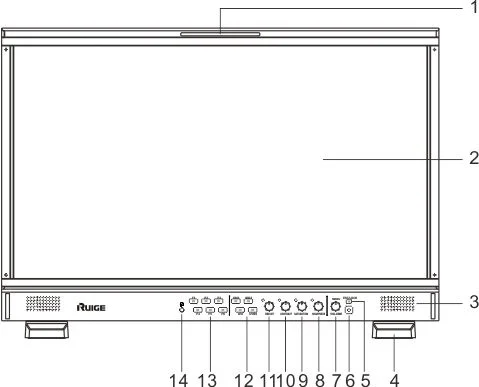

1 TALLY (indicator)
2 Protection plate
3 Speakers
4 Table bracket
5 Status lock/unlock / Esc
6 Power indicator
7 Main menu / Volume
8 Sharpness / Zoom
9 Saturation
10 Contrast
11 Brightness
12 Input source option keys
13 Shortcut keys(user-defined)
14 Headphone jack

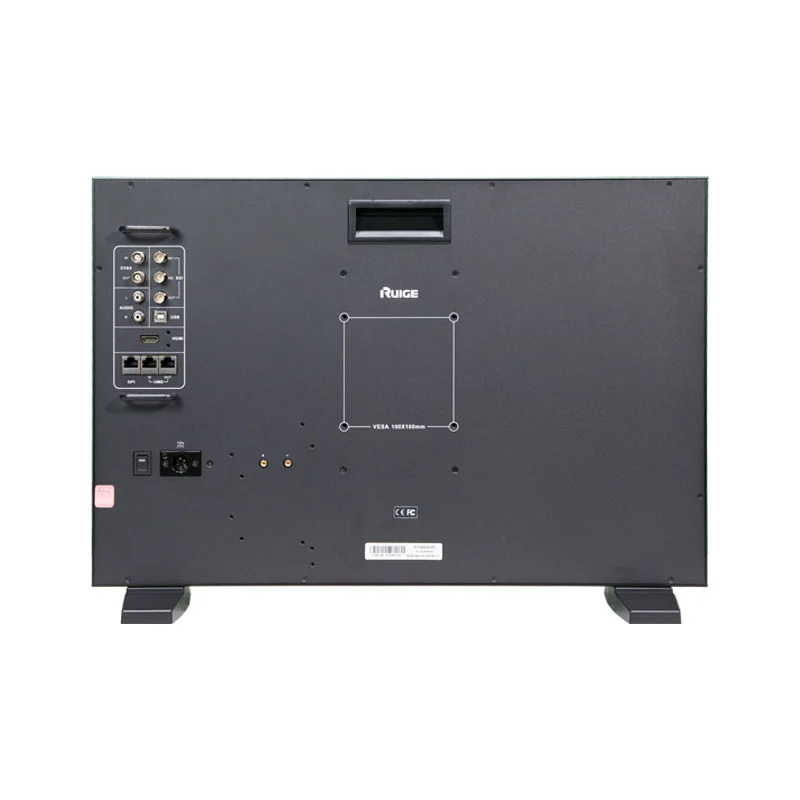

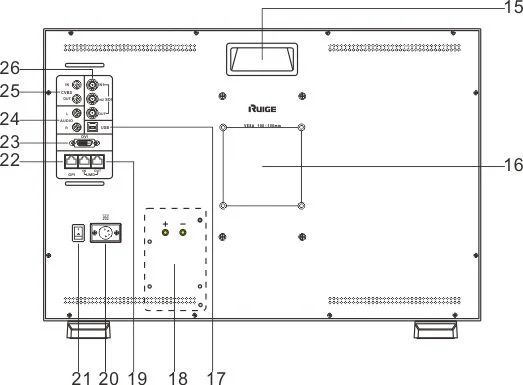

15 Handle
16 VESA mounting hole
17 Install Battery adaptor
18 Component   I/O
19 Software updates port
20 UMD control port
21 DC 12V power input
22 Power switch
23 GPI control port
24 DVI input
25 Audio input
26 CVBS I/O
27 3G/HD/SD-SDI I/O

3D Lut Loading

B/P/D Series Monitor internally built in 3D-LUT Color Management System in accordance with unified industry standards and it uses professional testing equipment to take systematic and accurate calibration for monitors to ensure the display indicator of monitor meet the tolerance range of color space standard .Therefore, it ensures each monitor has the accurate color restoration and the color of same style monitors is consistent to the maximum extent .

Luminance Waveform

The luminance waveform can be superimposed over picture (see below). The Y-axis represents the luminance level. There are two indicators; one at 100% and one at 700mv.

Usage:

The Luminance waveform is mainly used to read the value of the Y signal. This is helpful for setting Camera Iris levels.

RGB Waveform


RGB waveform can accurately reflect the overflow of the two ends. the RGB parade waveform shows how strong each color signal is in its own channel.

Usage:

Any of the three channel overflow on the left or right of the parade, it results in the mixed RGB overflow. Then the details of light or dark part will lost. each one is pegged at 100% where it appears in its channel. The channel shows red at 100% where the red patch appears, but zero where the green and blue patches appear, etc.

Vectorscope


There are 6 fixed vector measurement points; R, Mg, B, Cy, G and Ye. Neutral Colors (Black, White and Grey) are represented in the center of the vector scope. The direction is outward from the center and reflects the degree and amount of saturation; the further away from the center the higher the amount of color.

Usage:

The vector scope shows the distribution of color within the video signal and can be used to determine the amount of color, correct color phase alignment and color analysis of objects within the picture.

Audio Meter


16 channels of embedded audio in the SDI video signal can be decoded and 8 selective channels can be shown on the screen at the same time. The Volume unit shows both VU and PPM.

Usage:

The Volume unit is used for measuring audio levels and calibration. This is helpful for making sure that audio levels are within technical requirements and specifications.

Time Code (LTC、VITC)


Timecode information (LTC, VITC, ) can be decoded on the screen.

Usage:

Timecode generated by a camera or video recorder can be decoded and displayed on the screen as hour, minute, second and frames. Ruige P and B series monitors can display LTC and VITC information. Both can be displayed at the same time.

Focus Assistance


A red peaking filter is used for Focus Assistance. It is represented as a red line around sharp edges. The edge color can be changed if desired; available colors are red, blue, green, yellow and white.

Usage:

Using a red peaking filter aids in the ability to quickly focus or refocus a shot. As the photographer zooms into focus his shot sharp edges will be represented as red lines.

ELP


GPS in Video

Rapid positioning for out of range indicator

“Exposure analysis” function gives the user the ability to do fast out of range checks. When the image becomes more complex with out of range colors, it becomes too inconvenient to see.

The design inspiration of this function is based on x-ray machines and body scanners at airports. The black color indicates hard items and the softer items are represented with White and purple. These colors can be isolated in one second by contrasting with “Exposure Analysis” when switched on.

Case in point, security checks at airport are lacking due to subjective human factors. With Rapid positioning for out of range indicator allows for 100% accuracy. However, the end user has the freedom to not use this function for that artistic professional look.

Normal Image

Normal Exposure

Over Exposure

Under Exposure



False Color


Luminance levels can be represented using False Color on the screen. It represents the amount of exposure explained as color values ranging from Blue to Green to Yellow to Red.

Usage:

False Color is used to assist in setting the camera exposure. Blue (cool color) indicates a low exposure, a darker blue indicates an even lower exposure. Red (warm color) indicates a high exposure and a deeper red indicates an even higher exposure. Green and Yellow are in between. A scan feature allowing the image to be offset to the upper left revealing the Luminance Waveform on the upper right makes it easy to identify parts of the picture which may exceed standards.

ZEBRA


The zebra is suggested that the photographic exposure is a highlight indicator, and the aperture can be controlled according to the zebra tips when shooting with a manual aperture.

Usually when the brightness of the subject exceeds the maximum brightness (different types of models) that the camera can accommodate (different, this value is different), the zebra is started, so, when the aperture is adjusted, the subject should be the brighteree Slightly with zebras, while other parts have no zebra, which can be accurately exposed. If the spot is too much, the exposure is excessive; if there is no zebra pattern any part of the image, the image will be insufficient. Now some cameras are adjustable, usually adjusted between 60% and 100% of the highest brightness, and can be selected according to their own habits.

Safe & Area Marker


Usage:

Image overflow or cutoffs can be checked using this feature. This is helpful during “Pan and Scan” as image is prepped for various broadcast markets. Ruige monitors have selections for Safety Marker Scales, Title Scales, Transform Scales and Center Cross. This is helpful for composition during shooting or title placement.



Marker Scale


Blue Only


Only the blue portion of the video signal is displayed.

Usage:

This is used for monitor color phase adjustment, level and calibration.



Mono


Mono(chrome) displays only the Y portion of the video signal

Usage:

Human Eyes are more sensitive to the luminance signal therefore many viewfinders and small monitors have this function.



Muti-Aspect Ratio Switchable


Usage:

In order to adjust for correct scanning users can choose different Aspect ratios. Selections are: 16:9, 4:3, Letterbox, Pixel-to-Pixel, Over Scan and Built-in Scan.

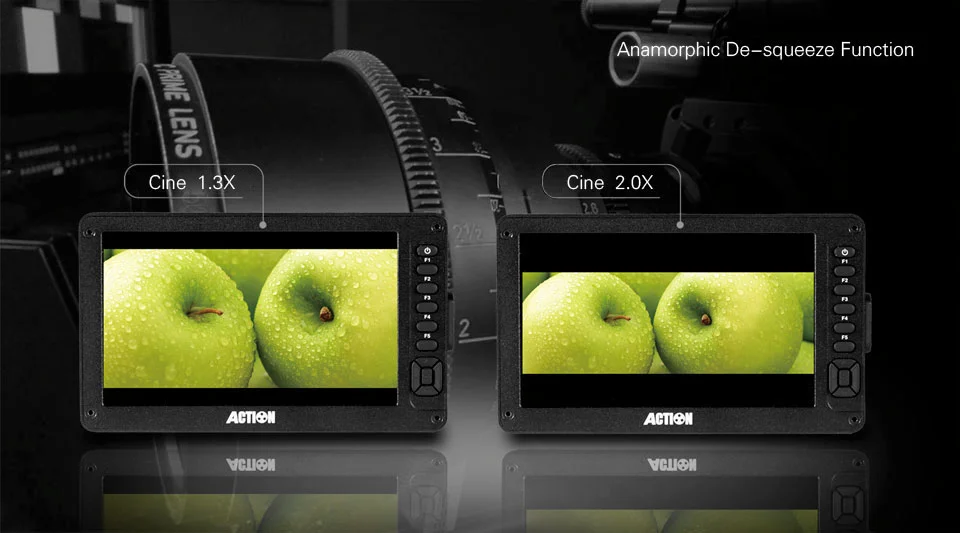

Anamorphic De-squeeze Function


This function can adjust the image shot by anamophic lens(e.g. 1.3X, 2.0X) to normal display ratio, and you don’t need to choose this function in the menu of cameras. The key is, not all ARRI camcorder possesses the function to correct the suqeezed images.

Over scan


Usage

Overscan is often used to programing for TV broadcast.

Pixel-to-Pixel


Because of the limit of monitor size and effective pixels, not all of monitors can be shown Full HD signal. Ruige P&B Series monitors use RPD technology to make image parts by parts to pixel to pixel so that 1080 original pixels can be reappear.

Usage:

This function can be used for the monitor with the resolution less than 1080. To view details, this function can avoid the loss of image detail due to lack of screen performance.



UMD


Dynamic Source information embedded in the SDI video signal can be displayed as UMD or IMD. This feature can be turned on and off via the menu.

Usage:

It can be used to supply signal source information from video routing equipment to operators during a live broadcast event.



H/V DELAY

Beyond the normal image,the blanking area of field/horizontal signal is shown in screen.
In SDI signal, there are many useful information embedded in the blanking area of field/horizontal signal. For example, SDI Audio, CC (Closed Caption),etc.. It is necessary to check the information in the blanking area to make sure if these information has been embedded successfully.

Log Conversion

On Display Meter Battery

When use battery to supply power to monitors, please enter the menu to “Auxiliary Function”. And open “Battery Checker”,

So you will find one Battery meter displayed at the top-right corner, caculating the remaining of battery capacity. When capacity is less than 205,the scale meter color will be changed from Green to Red.

GPI Control

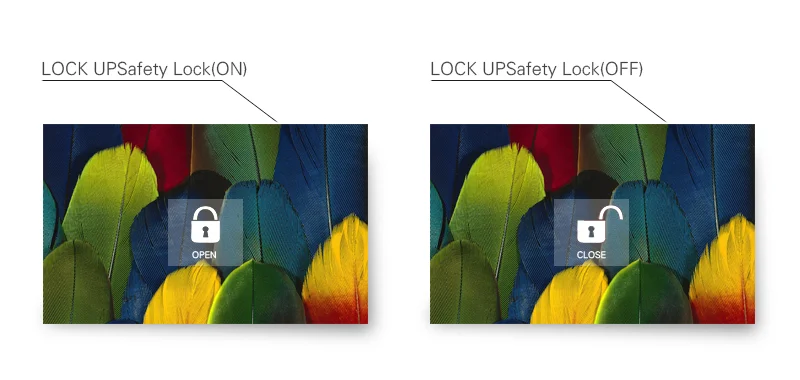

Safety Lock


Test and preset the brightness, contrast, saturation, color temperature and other parameters of the monitor according to the shooting requirements, confirm and keep the status to ensure the consistency of the gray scale and color reproduction of the images in the entire shooting process. If the function keys on the panel can not be locked, it is likely to operate by mistake, result in poor shooting effect.
Ruige P and B series products are both equipped with security lock function. When the system adjustment is done, just press the LOCK UP button for 3 seconds, the device will automatically enter the locked state. To remove the lock function, press the button for 3 seconds. When the power is cut off, it remains locked, and will not automatically release.
