TL-3100HR

Category:Monitor

Screen Size:31 inch

Features

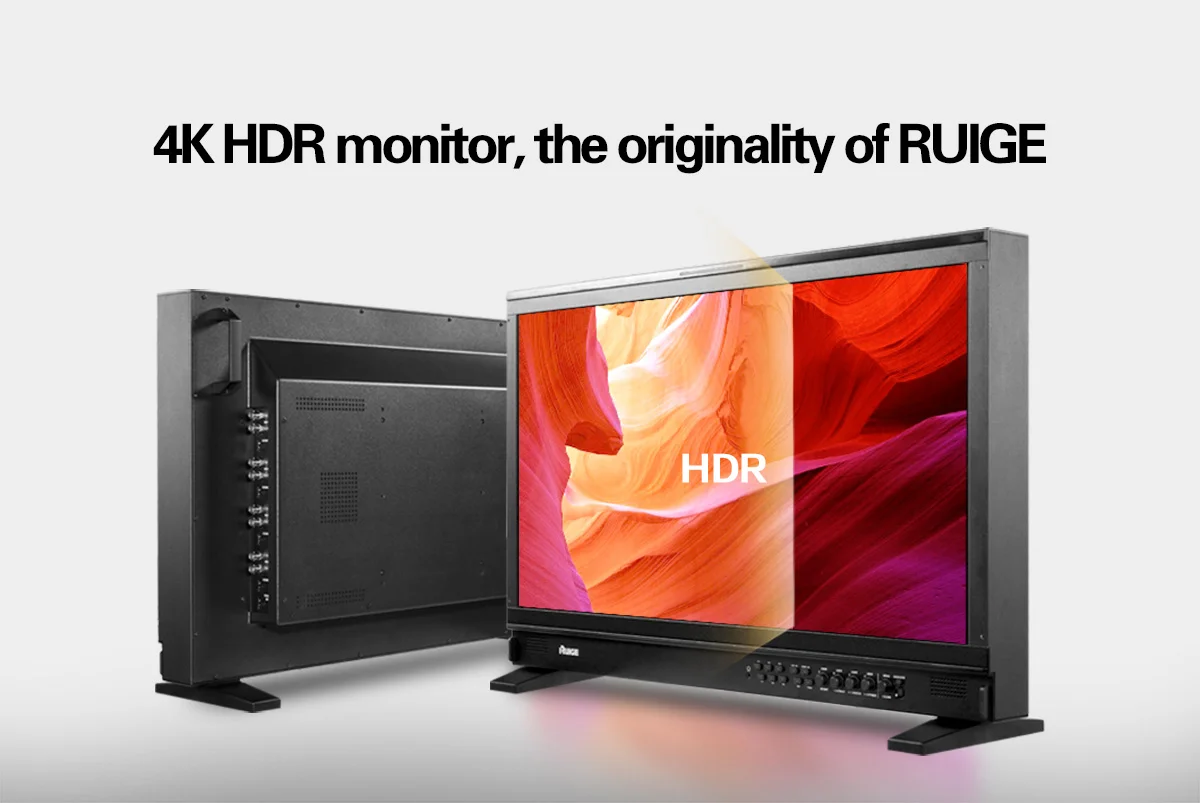

  • The film-level 4K LCD monitor, the high-end display device created by the Ruige Optic-Electronic.
  • Suitable for the pre-shooting and postpone toning of movies, TV series, high-end advertising.
Inquiry

TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR TL-3100HR

Size 31.1 inch
Resolution 4096×RGB×2160
Dot Pitch 0.1704(H)×0.1704(V)mm
Aspect Ratio 16:9 / 4:3 witchable
Back Light WHITE LED
Brightness(MAX) 1000cd/m2(Peak Brightness)
Contrast(MAX) 1450:1
Color Depth 10Bits(1.073G)
Image Processing 10Bits
Response Time 9ms
Viewing Angle H178° / V178°

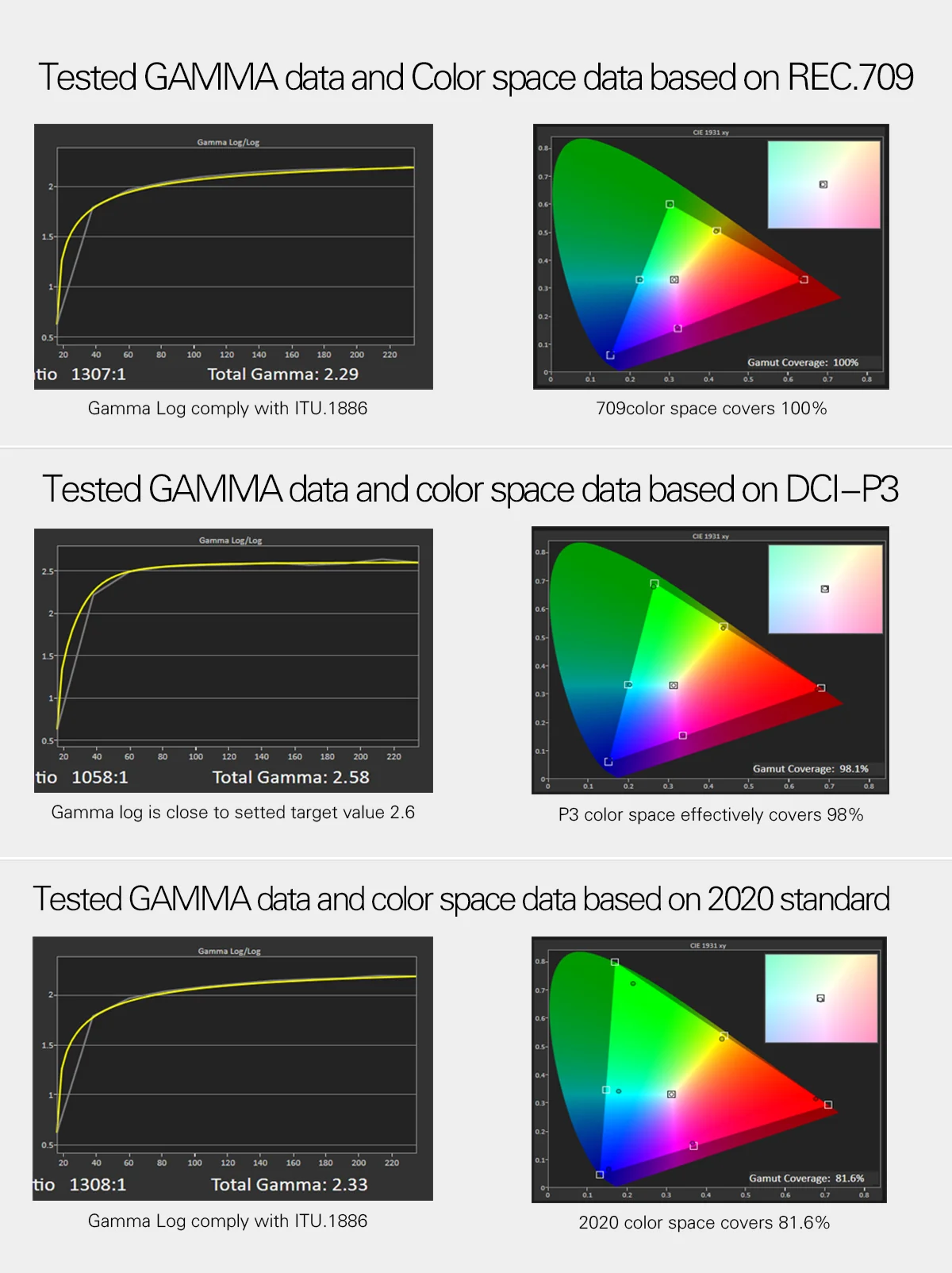

Color Mode ITU-R BT.709、DCI-P3、ITU-R BT.2020
HDR(High Dynamic Range) HLG  ITU-R BT.2100、PQ  SMPTE ST.PQ2048
EOTF 2.2,2.4,2.6, SMPTE ST.2048,ITU-BT.2100 ,

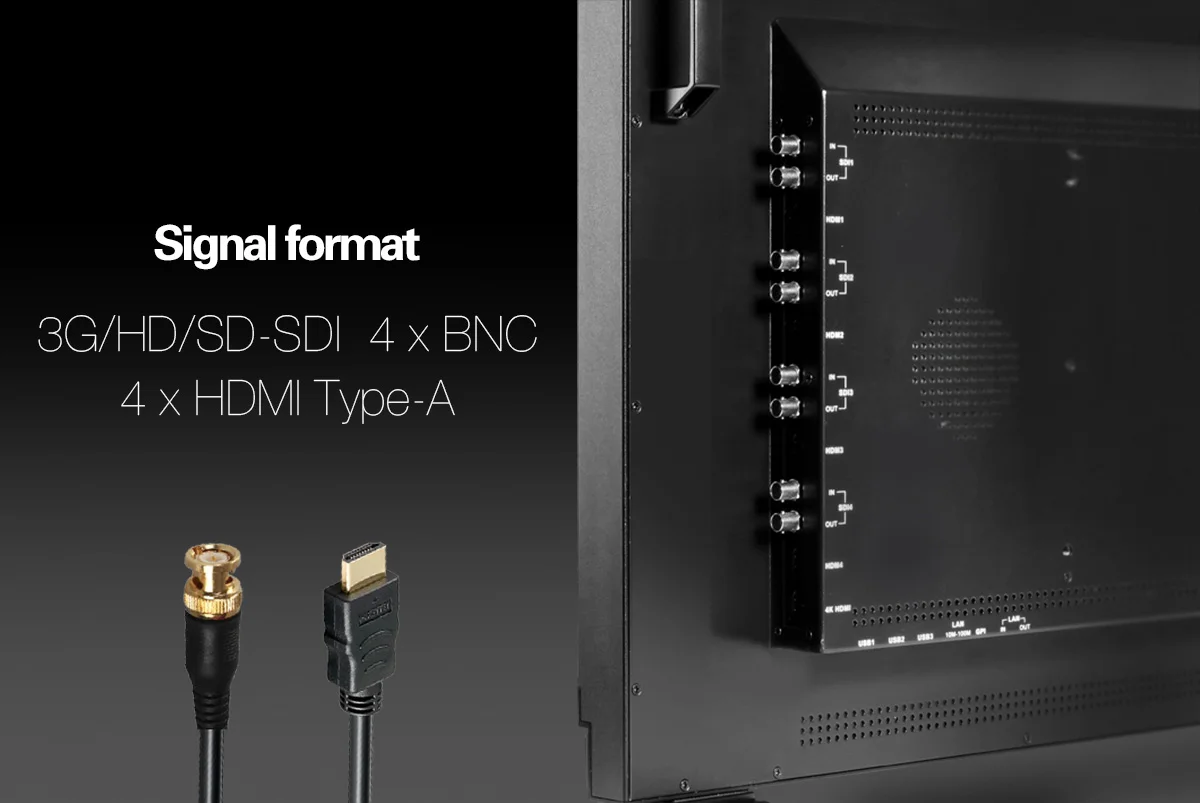

3G-SDI BNC x 4(12G-SDI x 1 3G-SDI x 3)
HDMI 2.0 Type A x 1
3G -SDI BNC x 4(12G-SDI x 1 3G-SDI x 3)
Audio Demultiplexing Support
Audio meter 8 Lines
Embedded Speaker 2 Line x8Ω/3W
Headphone Support

Signal Format

Signal System Signal Format  2SI(2-Sample Interleave division) SQD(Square division)
4K/UHD(12G-SDI Single Link)
3840*2160/50p/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
3840*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4096*2160/48p/50/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
4096*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4096*2160/24p/25p/30p 4:4:4 XYZ 12Bit Level A/Level B-DL 2SI/SQD
4K/UHD(6G-SDI Single Link)
3840*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4096*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4K/UHD(6G-SDI Dual Link)
3840*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
3840*2160/50p/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
4096*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4096*2160/48p/50/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
4K/UHD(3G-SDI Quad Link)
3840*2160/50p/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
3840*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
3840*2160(24/25/30)psf 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL SQD
4096*2160/48p/50/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL 2SI/SQD
4096*2160/24p/25p/30p 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL 2SI/SQD
4096*2160(24/25/30)psf 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL SQD
4096*2160/24p/25p/30p 4:4:4 XYZ 12Bit Level A/Level B-DL 2SI/SQD
4096*2160(24/25/30)psf 4:4:4 XYZ 12Bit Level A/Level B-DL SQD
4K/UHD(HD-SDI Quad Link)
3840*2160/24p/25p/30p 4:2:2 YCbCr 10Bit Level A/Level B-DL SQD
3840*2160(24/25/30)psf 4:2:2 YCbCr 10Bit Level A/Level B-DL SQD
4096*2160/24p/25p/30p 4:2:2 YCbCr 10Bit Level A/Level B-DL SQD
4096*2160(24/25/30)psf 4:2:2 YCbCr 10Bit Level A/Level B-DL SQD
4K/UHD(3G-SDI Dual Link)
3840*2160/24p/25p/30p 4:2:2 YCbCr 10Bit Level B-DS 2SI/SQD
3840*2160(24/25/30)psf 4:2:2 YCbCr 10Bit Level B-DS 2SI/SQD
4096*2160/24p/25p/30p 4:2:2 YCbCr 10Bit Level B-DS SQD
4096*2160(24/25/30)psf 4:2:2 YCbCr 10Bit Level B-DS SQD
2K/HD(3G-SDI) SMPTE 425M  SMPTE296M SMPTE274M SMPTE259M
2084*1080/50p/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL
2084*1080/30p/25p/24p/24psf 4:2:2 YCbCr 10Bit Level A/Level B-DL
1920*1080/50p/60p 4:2:2 YCbCr 10Bit Level A/Level B-DL
1920*1080i(60/59.94/50) 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL
1920*1080p(30/29.97/25/24/24sF/23.98) 4:4:4 RGB/YCbCr 10Bit/12Bit Level A/Level B-DL
1280*720p(60/59.94/50) 4:4:4 YCbCr 10Bit Level A
2K/HD(HD-SDI) SMPTE296M SMPTE274M SMPTE259M
1920*1080i(60/59.94/50) 4:2:2 YCbCr 10Bit
1920*1080p(30/29.97/25/24/24sF/23.98) 4:2:2 YCbCr 10Bit
1280*720p(60/59.94/50) 4:2:2 YCbCr 10Bit

*SDI Frame Rate  1/1.001 Compatible



HDMI2.0

HDMI 2.0  4K
3840*2160/50p/60p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

4:2:0 YCbCr

12Bit

8Bit

8Bit

CEA-861-F
3840*2160/24p/25p/30p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-F
4096*2160/50p/60p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

4:2:0 YCbCr

12Bit

8Bit

8Bit

CEA-861-F
4096*2160/24p/25p/30p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-F
HDMI 2.0  2K
1920*1080/24/25/30/50/60p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-D
1920*1080/50i/60i 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-D
1280*720/50p/60p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-D
720*576/50i 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-D
720*480/60p 4:2:2 YCbCr

4:4:4 RGB/YCbCr

12Bit

12Bit/10bit/8bit

CEA-861-D

Frame Rate  1/1.001 Compatible

Input Voltage AC 100 V-240 V、50 Hz/60 Hz
Power(MAX) AC:0.5-1.7A
Working Temperature 0-40 ℃
Store Temperature -20-60 ℃
Store humidity 0%-90% No Condensation
Case Material Aluminium
Dimension(mm) L742.4×H458.8×D81mm(Monitor Unit)
Weight Around 13.3Kg
Fixing Mode Desktop or VESA
VESA Hole 200*200mm
